New Weigh Safe Pintle Attachment For Rugged and Heavy-Duty Towing!

The Weigh Safe Pintle Attachment has finally arrived.

The Weigh Safe Pintle Attachment inserts into the Steel Weigh Safe Slider, and is compatible with trailers that use a coupling lunette ring. With the Steel Weigh Safe slider, you can know what your tongue weight is in order to make sure that you are within 10-15% of your GTW for your rugged and heavy-duty towing.

So, what is a pintle hitch?

A pintle hitch is particularly useful for rugged, heavy-duty towing as it can provide a bigger range of motion, handle off-road terrain, and have higher towing capacities.

The way a pintle hitch works is pretty simple. It will typically have a locking arm that opens and closes. This arm will go through a lunette ring, which is the coupling component of the trailer. The locking arm will then shut over and through the lunette ring, securing the attachment.

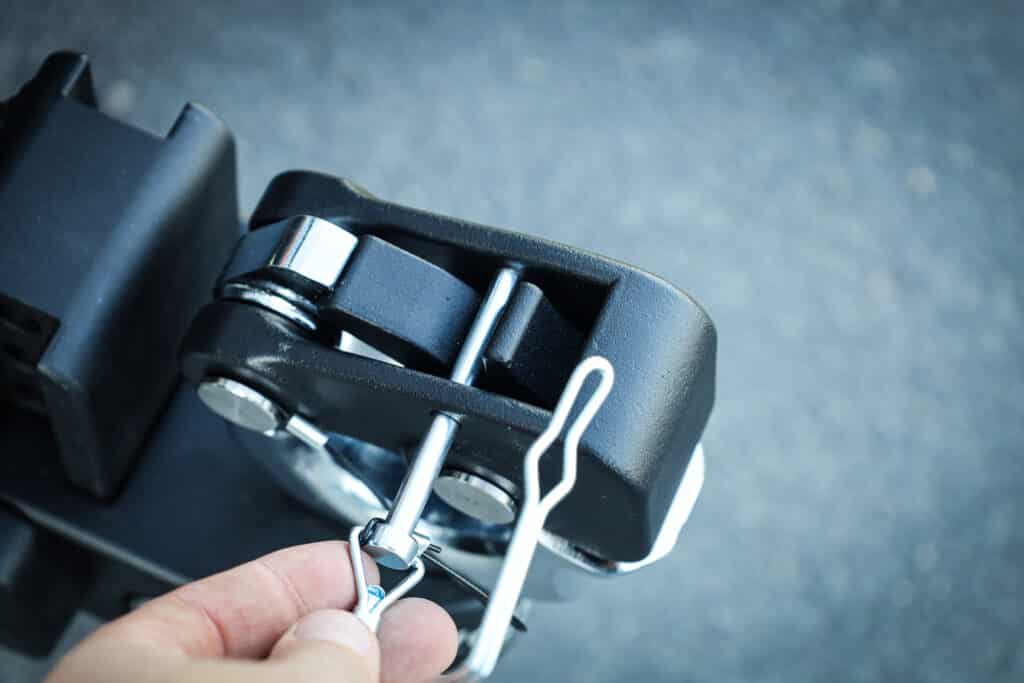

The Weigh Safe Pintle Attachment functions the same way. The locking arm will attach through the lunette ring coupler, and shuts on the cradle portion. Once shut, the pintle mechanism automatically locks in place, but also has a safety pin for added security.

weigh safe pintle hitch
weigh-safe pintle with sliding pin
new weigh safe pintle hitch
pintle attachment - weigh safe
common pintle hitch questions - weigh safe

Are pintle hitches noisy?

Pintle hitches can be more noisy when compared to regular drop hitches. This is due to the loose coupling that allows more articulation while towing as well as towing on uneven/off-road terrain.

Who uses pintle hitches?

Pintle Hitches are commonly used with heavy-duty utility trailers for the construction, landscaping, and military industries.

Can you use the Weigh Safe Pintle Attachment with the Aluminum Weigh Safe Drop Hitch?

NO! The Weigh Safe Pintle Attachment is only compatible with the Steel Weigh Safe Drop Hitch.

Why Steel?

Steel is especially beneficial when it comes to heavy duty towing. It has great wear-resistant properties and has the ability to tow higher amounts of weight,  which is why we use it for our True Tow Weight Distribution Hitch and Pintle Attachment!

Can the Weigh Safe Pintle Attachment be used in the RISE position?

NO! The Weigh Safe Pintle Attachment is only compatible in the DROP Position and CANNOT be used in the rise position.

LET US SHOW YOU WHAT IT’S ALLLL ABOUT…

why choose the weigh safe pintle attachment?

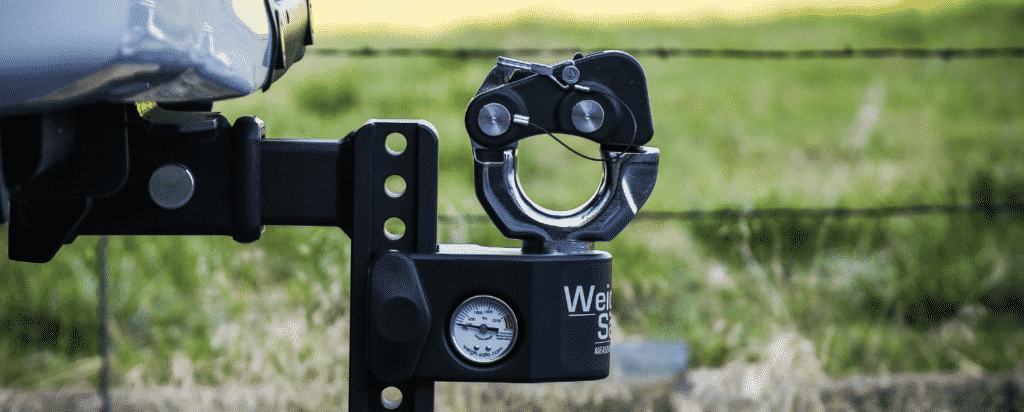

weigh safe pintle attachment

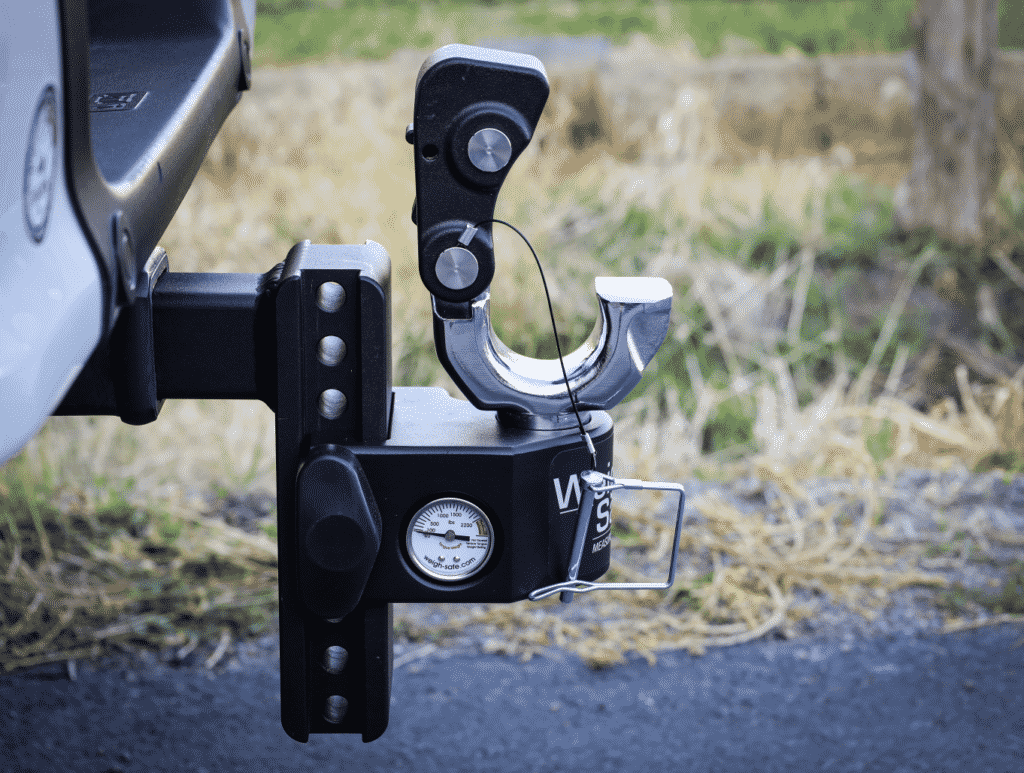

pintle hitch locked



MATERIALS

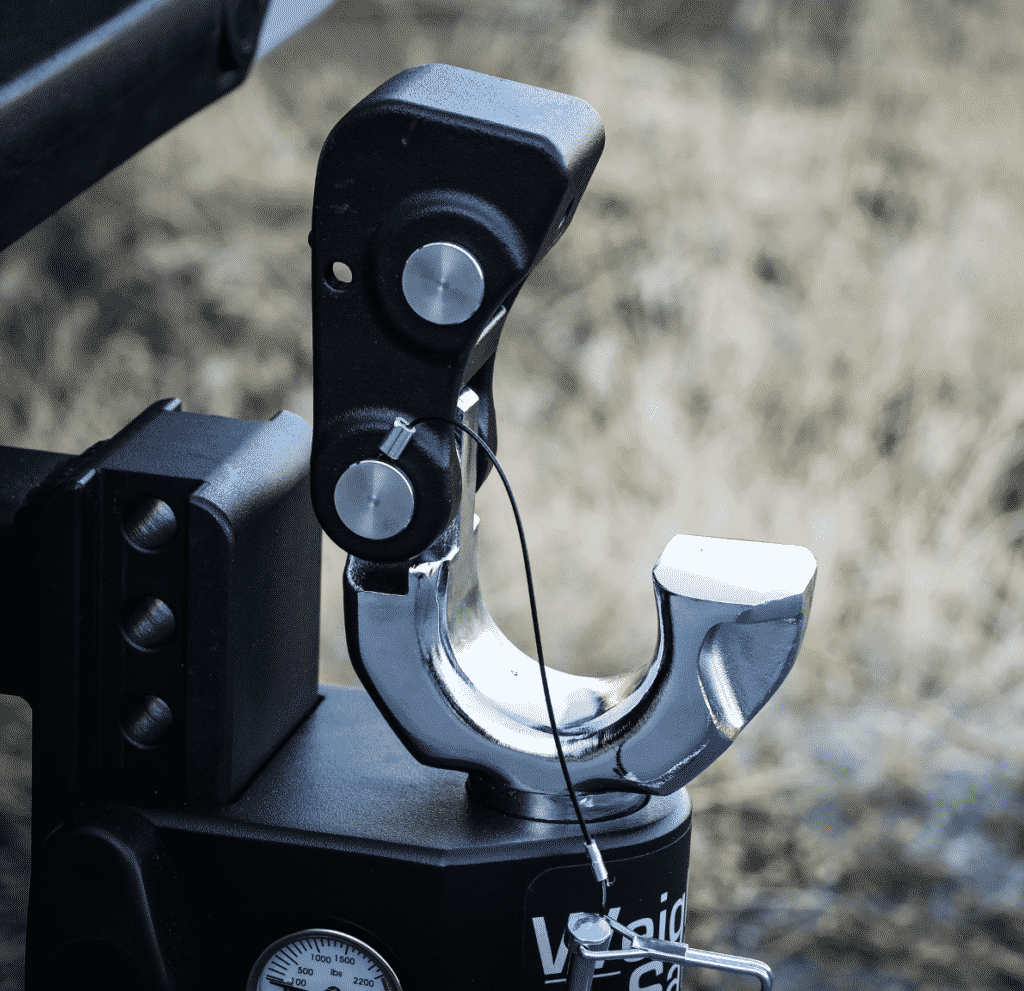

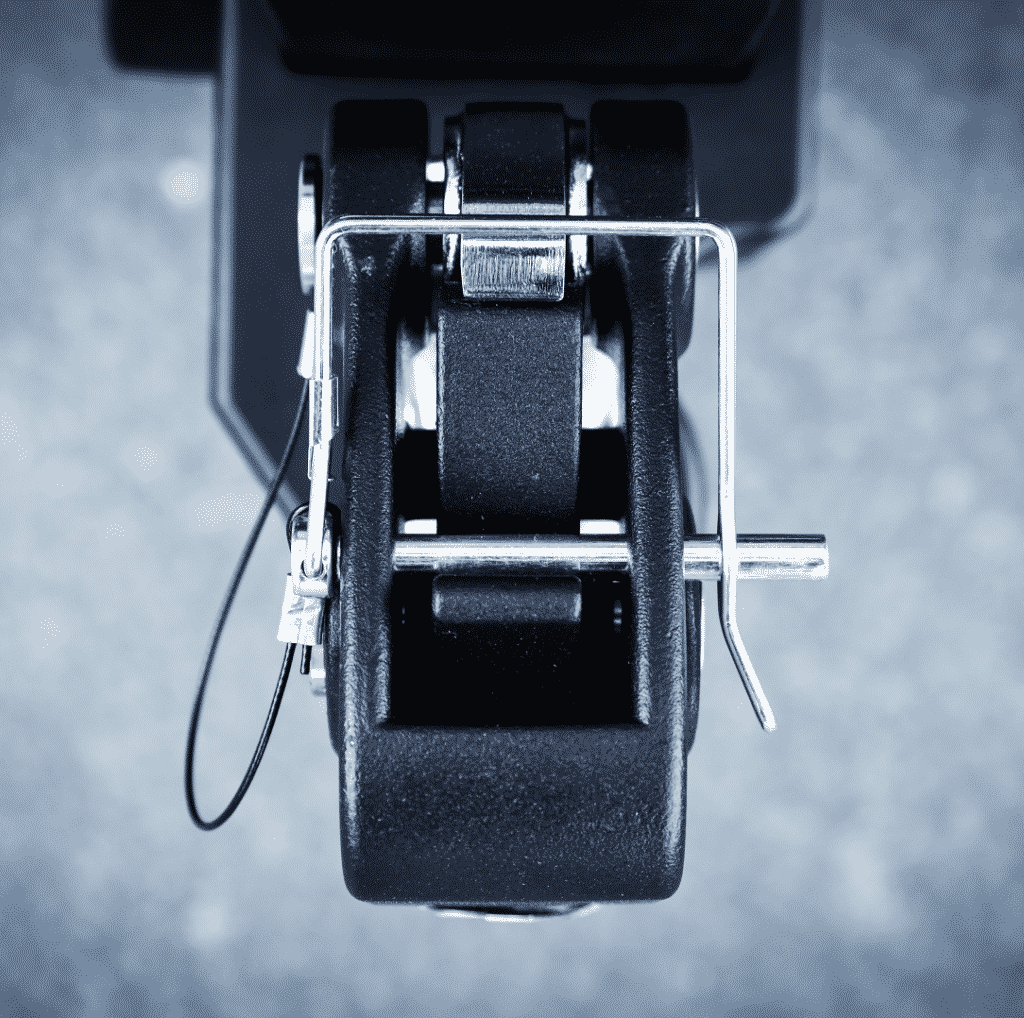

The Weigh Safe Pintle Attachment is constructed of high-strength carbon steel and has an easy latching system to lock and unlock with a safety clip.

The bottom portion is chrome-plated while the top-portion (latch) has a matte black powder coating for corrosion resistance.

RATINGS

Built for rugged, heavy-duty towing, the Weigh Safe Pintle Attachment can tow up to 12,500lbs-20,000lbs Gross Trailer Weight.

The Weigh Safe Pintle Attachment will reflect the ratings of your Steel Weigh Safe Drawbar.

weigh safe pintle attachment base

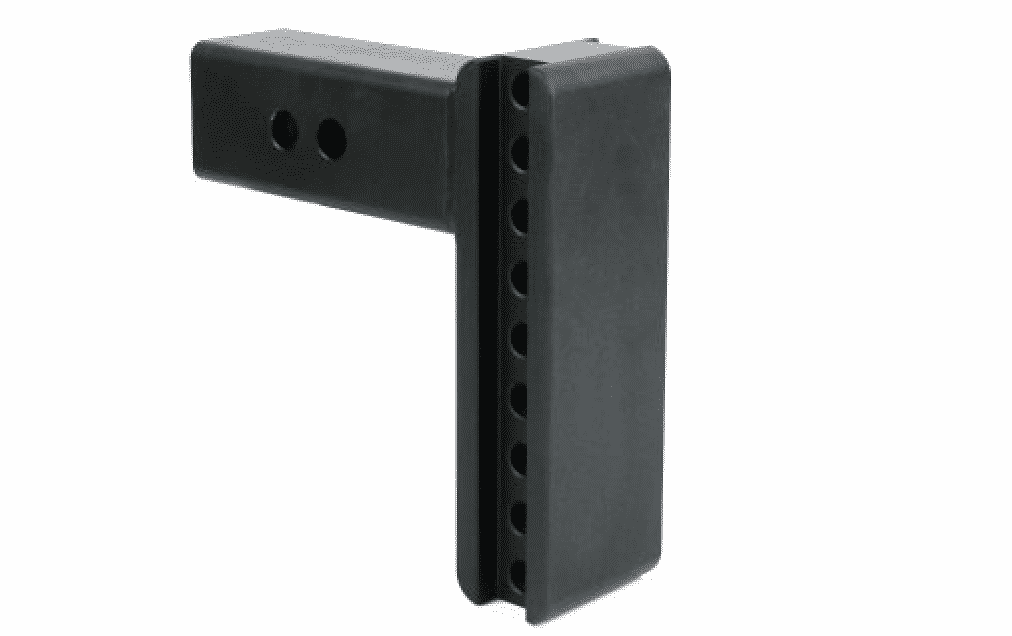

NORMAL STEEL WEIGH SAFE DRAWBAR

2″ SHANK: 12,500lbs GTW

2.5″ SHANK: 18,500lbs GTW

pintle base

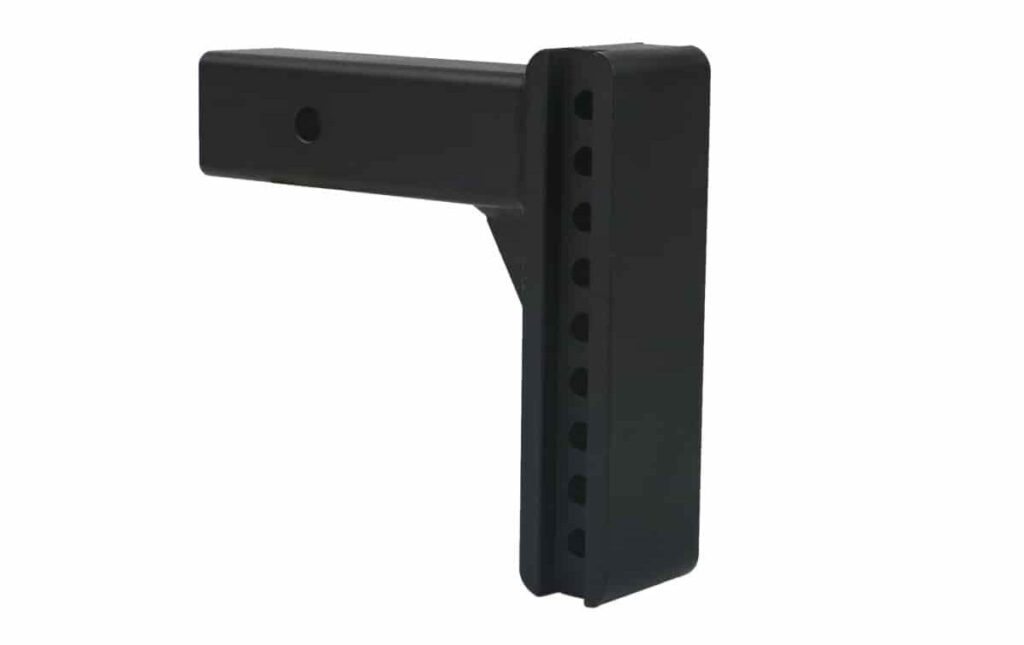

TRUE TOW WEIGHT DISTRIBUTION DRAWBAR

2″ SHANK: 15,000lbs GTW

2.5″ SHANK: 20,000lbs GTW

EASILY INTERCHANGEABLE

Whether you are towing a normal bumper tow trailer one day or a heavy-duty trailer the next, you can easily switch out the components for your specific towing application and hit the road.

HOW TO INSTALL YOUR

WEIGH SAFE PINTLE HITCH

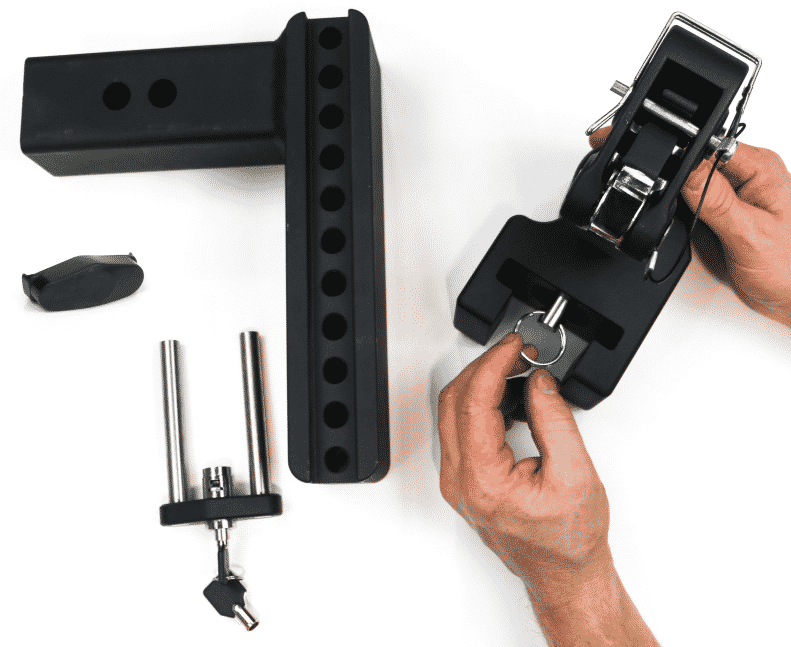

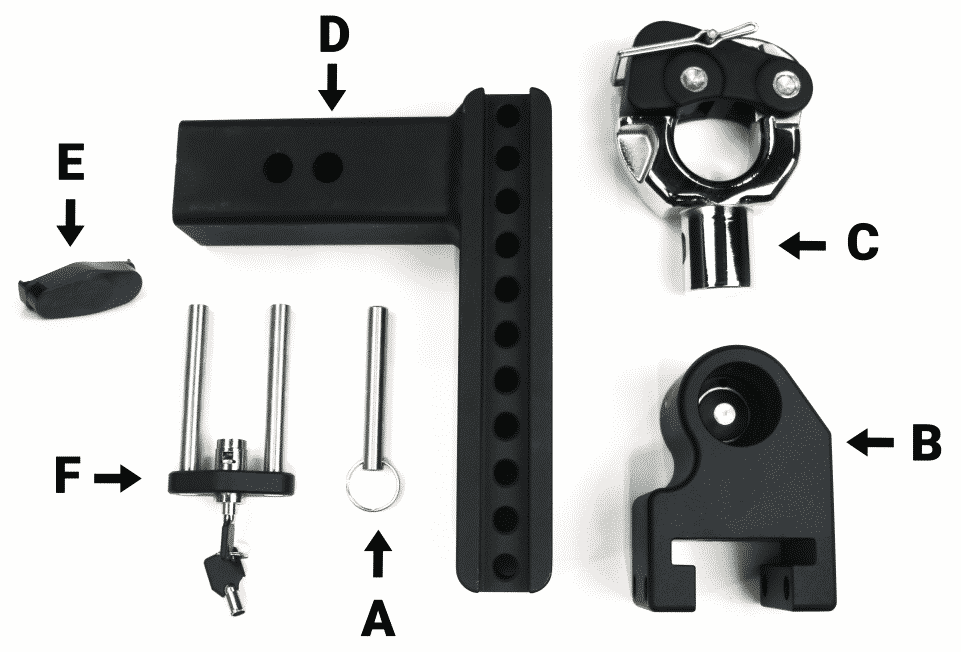

pintle hitch parts
assembling pintle hitch
assembling weigh safe pintle hitch
assembling weigh safe pintle

STEP #1

Ensure that you are using the Weigh Safe Pintle Attachment (C) with a Steel Weigh Safe Drop Hitch.

DO NOT USE IT WITH OUR ALUMINUM DROP HITCH.

STEP #2

Insert the Weigh Safe Pintle Attachment (C) into the Steel Weigh Safe Slider (B).

Ensure that the Steel Weigh Safe Hitch Ball PIN (A) is inserted fully into the Slider.

Do not operate without a Steel Weigh Safe Hitch Ball Pin in place.

STEP #3

Place the Steel Weigh Safe Slider at the desired drop on the Steel Draw Bar (D) to ensure your vehicle and trailer are properly Positioned.

THE DRAWBAR MUST BE USED IN THE DROP POSITION WHEN USING THIS PINTLE ATTACHMENT

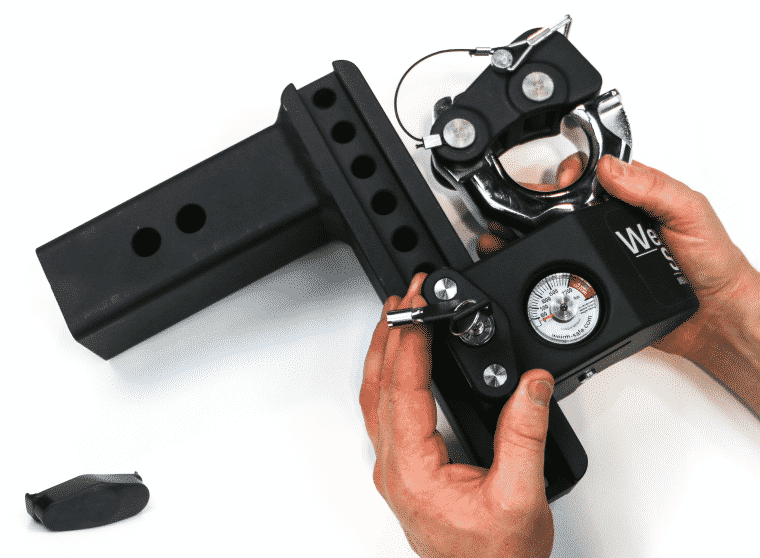

STEP #4

Insert the Steel Dual Pin Key Lock Assembly (F) into the Slider and lock in place by turning the key.

Pull on the lock to ensure that it is engaged and place the Dust Lock Cover (E) over the lock.

Do not operate without making sure the lock is securely locked in place.
PLEASE NOTE:
The Weigh Safe Pintle attachment is ONLY compatible with the Steel Weigh Safe Slider, that can either slide onto your normal Steel Weigh Safe drawbar or your True Tow Weight Distribution Drawbar.
This attachment was designed to be used ONLY in the drop position, and CANNOT be used in the rise position.

Why choose the Weigh Safe Pintle Attachment?

The Weigh Safe Pintle Attachment has a clean and sturdy design that is easy to use AND gives you a Towing Peace of Mind. You can measure your tongue weight and make sure that you are within 10-15% of your GTW to have a safe towing experience for those rugged, heavy-duty towing sessions.

On top of that, you can have a variety of interchangeable towing attachments for your various towing needs. Whether you need the normal Steel Weigh Safe Ball Mount, a True Tow Weight Distribution Hitch, or a Pintle Hitch, Weigh Safe has you covered!

Why Be Kinda’ Safe, When You Can Be Weigh Safe?!

[]
