Gen 1 Weight Distribution Draw Bars

$68.00 – $195.50

-

Each drop is actually 3″ longer than the drop listed (i.e. the 4” drop is actually 7” in total length)

Clear

Please verify that your hitch receiver matches the shaft size you select above. See Our Hitch Receiver Size Guide for help or call/text 801.820.7020 or email support@weigh-safe.com.
SKU: N/A Categories: , ,

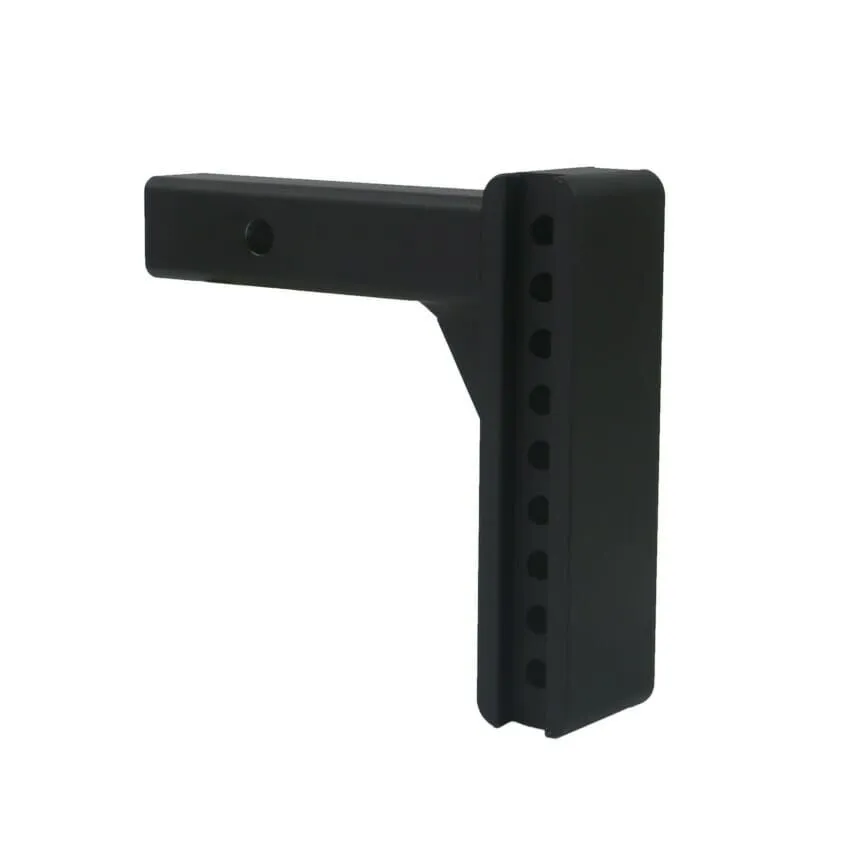

This steel draw bar was designed specifically for our True Tow Weight Distribution Hitch. It has a solid shank design and a gusset connecting the shank to the drop portion to provide added strength for this specific hitch.

Features 6″ Drop Hitch 8″ Drop Hitch
Shaft
2″or 2.5″
Max GTW
2” shank – 15,000 lbs & 2.5” shank – 20,000 lbs
Material
High-strength steel with black powder coated finish; shank is solid steel.
V5 & J684 certified
✓
Drop Hitch Adjustment
1” increments
Weight 23 lbs, 27 lbs 29 lbs, 32 lbs
Rise
All hitches may be used in the rise position ***Gain 1” (e.g.) 6” drops are 7” rises
Total Height
Add 3” (e.g. 6” drops measure 9” from the top of the draw bar to the base)
Hitch Pin Hole
5/8″ Diameter
Compatible
NOT compatible with any of our aluminum components; ONLY compatible with our Steel Weigh Safe Slider
Stowable
✓

***Our Weigh Safe 3″ shank sizes are not stowable
