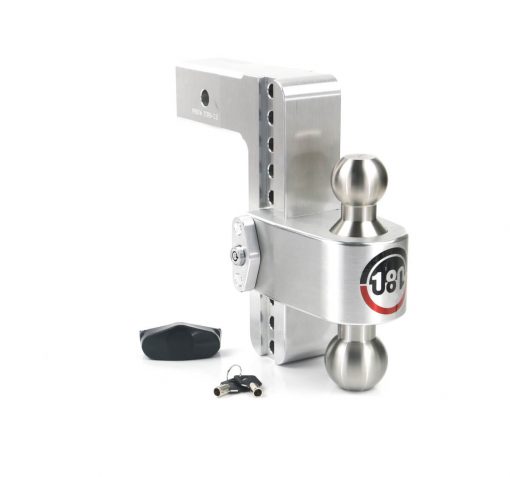

What’s in the Box
| 1- Drawbar | 1- Combo Ball |
| 1- 180 Slider | 1- Ball Retaining Pin |
| 1- Key Lock Assembly | 1- Dust Lock Cover |
2″ & 2-5/16″ Stainless Stell Combo Ball
21,000 LBS Max GTW
2,200 LBS Max Tongue Weight
V5 & J684 Certified
180 Download Hitch Installation Guide
| Features | 4″ Drop Hitch | 6″ Drop Hitch | 8″ Drop Hitch | 10″ Drop Hitch |
|---|---|---|---|---|
| Built-in Scale | × | |||
| Shaft | 2″, 2.5, or 3″ | |||
| Ball | 2” & 2-5/16” Stainless Steel or Chrome Plated Steel Balls, 1-7/8 & 2” ball option | |||
| Max GTW | 7500 lbs – 1-7/8” ball 8000 lbs – 2” ball 12,500 lbs – 2-5/16” ball (2” shaft) 18,500 lbs – 2-5/16” ball (2.5” shaft) 21,000 lbs – 2-5/16″ (3″ shaft) |
|||
| Max Tongue | 1,500 lbs (2″ Shaft), 2,200 lbs (2.5″ & 3″ Shafts) | |||
| V5 & J684 certified | ✓ | |||
| Drop Hitch Adjustment | 1” increments | |||
| Weight | 16 lbs | 18 lbs | 19 lbs | 20 lbs |
| Hitch material | Aircraft Grade Aluminum and Stainless Steel | |||
| Pin | Dual pin key lock assembly included | |||
| Rise | All hitches may be used in rise position *Gain 1 inch (e.g. 4” drops are 5” rises) | |||
| Total Height | Add 3 inches (*e.g. 4” drops measure 7” from the top of the receiver to the hitch base) | |||
| Hitch Pin Hole | 5/8″ Diameter | |||
| Compatible with Clam Shell | × | |||
| Compatible Tow Balls | Compatible ONLY with the 180 Hitch combo ball, NOT compatible with the single Weigh Safe tow balls | |||
| Stowable | ✓
***Our 180 Drop Hitch 3″ shank sizes & 4″ drops are NOT stowable |
|||
| Maintenance | Stainless steel tow balls can still show surface rust, particularly after use in a coupler and exposure to water/salt. This rust will not spread past the surface of the towball and it will not affect the performance of the towball. The rust can be cleaned up and removed with a scotch brite/brillo pad. | |||
