The True Tow Weight Distribution Hitch

True Tow Weight Distribution Hitch – Middleweight

Meet our medium-duty weight distribution hitch, rated either 8,500 lbs or 12,000 lbs GTW. Our patented technology will get you on the road to adventure quickly and safely.

True Tow Middleweight – Weight Distribution Hitch

$900.00$1,040.00

-

Frequently Bought Together

Original price was: $65.00.Current price is: $55.00.
$15.00
Original price was: $10.00.Current price is: $8.00.

Please verify that your hitch receiver matches the shaft size you select above. See Our Hitch Receiver Size Guide for help or call/text 801.820.7020 or email support@weigh-safe.com.

Clear

True Tow Weight Distribution Hitch – Heavyweight

Choose between 18,500 lbs or 22,000 lbs GTW – either way you’re getting the smoothest, safest tow no matter what you’re hauling. Our patented technology will get you on the road to adventure quickly and safely.

True Tow Heavyweight – Weight Distribution Hitch

$1,120.00$1,460.00

-

Optional Add-Ons

$80.00

Frequently Bought Together

Original price was: $15.00.Current price is: $12.00.
Original price was: $10.00.Current price is: $8.00.
Clear
Features
6″ Drop Hitch, 8″ Drop Hitch
Trailer Compatibility
ONLY compatible with 3″, 4″, 5″ and 6″ tall trailer frames up to 2.5″ thick *Not compatible with trailers that have a frame larger than 5″ and have the coupler mounted to the bottom of the frame. (Typically found on Jayco Trailers)
*Not Compatible with Surge Brakes Due to the length of the hitch some trailers may require their chains and breakaway cable to be extended and or remounted.
Built-in Scale
Shaft
2″ or 2.5″
Max GTW
15,000 (2″ shaft), 20,000 lbs (2.5” shaft)
Max Tongue
1,500 lbs (2″ Shaft), 2,000 lbs (2.5″ Shafts)
Weight & Dimensions
133.5 lbs – 146 lbs; 37 x 12.5 x 8.25 in
V5 & J684 certified
Drop Hitch Adjustment
1” increments
Ball material
Stainless steel
Pin
Dual pin key lock assembly included
Rise
All hitches may be used in rise position *Gain 1 inch (e.g. 6” drops are 7” rises)
Total Height
Add 3 inches (*e.g. 6” drops measure 10” from the top of the receiver to the hitch base)
Hitch Pin Hole
5/8″ Diameter
Saves Lives
Saves Property
Saves Time

Weigh Better

Introducing the first ever weight distribution hitch that can truly distribute your load with ease. With our continued efforts in revolutionizing the towing industry and offering our customers a Towing Peace of Mind™, we now offer a truly complete weight distribution system called “TRUE TOW™”. Our Weigh Safe True Tow™ Weight Distribution Hitch includes “True Tow™ Technology” so that you can distribute your load properly!

Why Does Having Proper Tongue Weight Matter?

  • Prevents trailer sway: ‘fishtailing’ or side-to-side movement
  • Creates a much safer and more enjoyable towing experience
  • Less wear and tear on your tow vehicle and trailer.

Ready for towing peace of mind?

BUILT-IN SCALE

A built-in scale to measure both tongue weight to ensure 10-15% of GTW and distributed tongue weight to truly give you a distributed towing system.

LIVE ADJUSTMENT SYSTEM

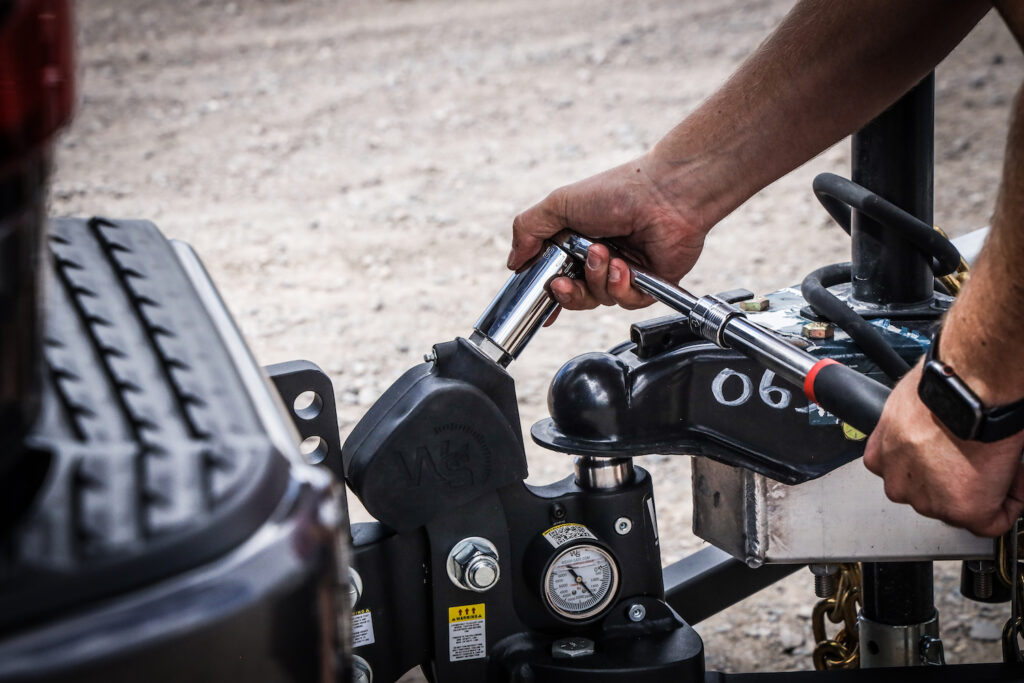

A live adjustment system built into the head assembly with an internal pivot point that eliminates the need to remove the head assembly for re-adjustment resulting in a much easier and quicker installation, anytime adjustment, not to mention it saves a significant amount of time.

EASY HEIGHT ADJUSTMENT

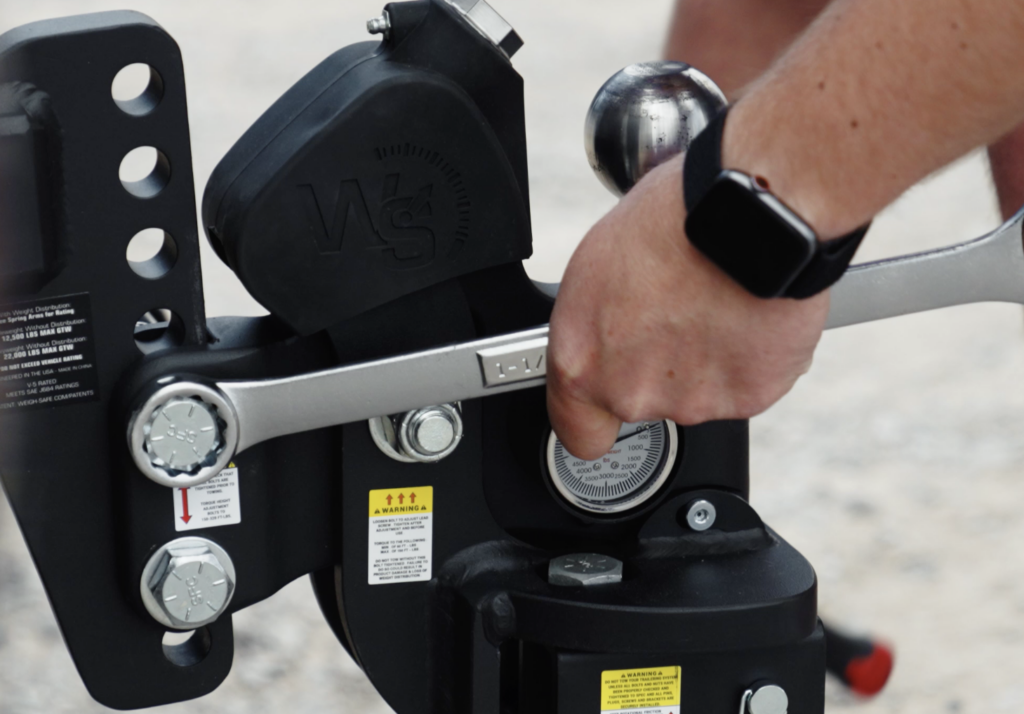

Easy height adjustment using our dual pin key lock assembly providing safety from theft and ease with 1” hole increments to provide more accurate height adjustment compared to competitors with 1.75” hole increments.

EXTENDED SLEEK DESIGN

An extended sleek design that generally gives you the ability to lower your tailgate or open your liftgate without the trailer tongue/jack interfering.

what is GVWR

TRUE DISTRIBUTION

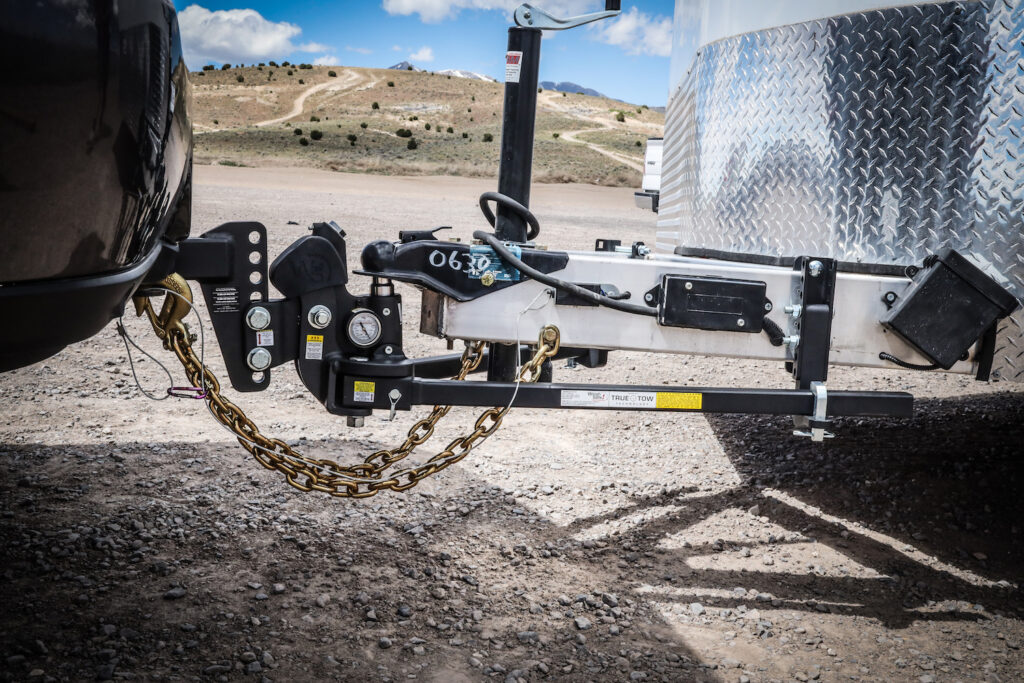

Truly distributes the tongue weight of the trailer between the back axle of the tow vehicle, and the axle(s) of the trailer and returns the lost weight off the front axle to provide the customer a safer and smoother ride.

ANTI-SWAY HITCH

Provides anti-sway friction areas that help to reduce sway caused by wind or passing vehicles. The anti-sway friction areas reside in the sway bar connection points in the head assembly and the trailer bracket connection points. The hitch head assembly, spring arms and trailer brackets are all vital components to aid in reducing trailer sway.

DTW TOOL

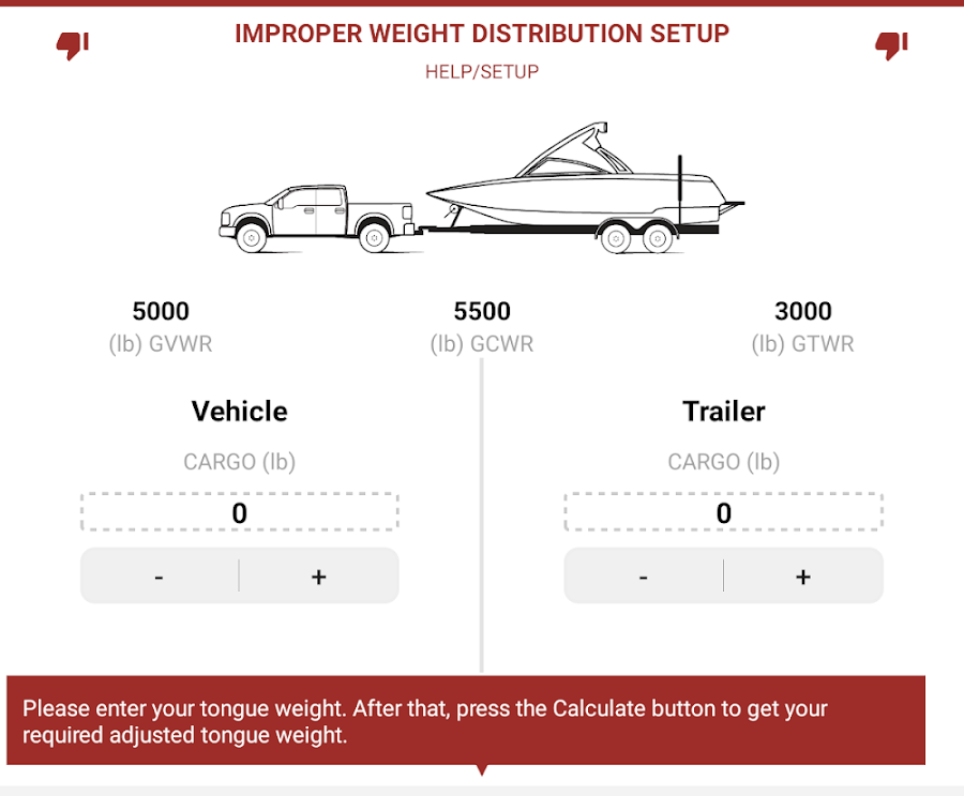

DTW (Distributed Tongue Weight) tool application for smartphones (android and IOS) or available on our website to set up the highly accurate distributed system by outputting a DTW that the Weigh Safe gauge on the hitch will read when distributed correctly.

Ready for towing peace of mind?

Towing Peace of Mind icon - safe distributed tongue weight

The Weigh Safe includes a built-in scale so you can properly distribute your load for a smoother, safer towing experience. No need for guessing

Lifetime Durability Trailer Hitch

Made from Aircraft grade aluminum or stainless steel. Supports industry leading gross trailer weight of up to 21,000 lbs.

Easily Adjust Hitch Height

Adjustable drop available in multiple Sizes:
4 inch, 6 inch, 8 inch, or 10 inch drops

With 2″, 2.5″, or 3″ shank sizes to fit any application

High quality aluminum trailer hitch

High quality hitches that have been expertly designed and engineered and include a lifetime tongue weight gauge warranty!

Weigh Safe is Family Owned and American Made

What's the big deal about Tongue Weight and Trailer Sway Anyway?

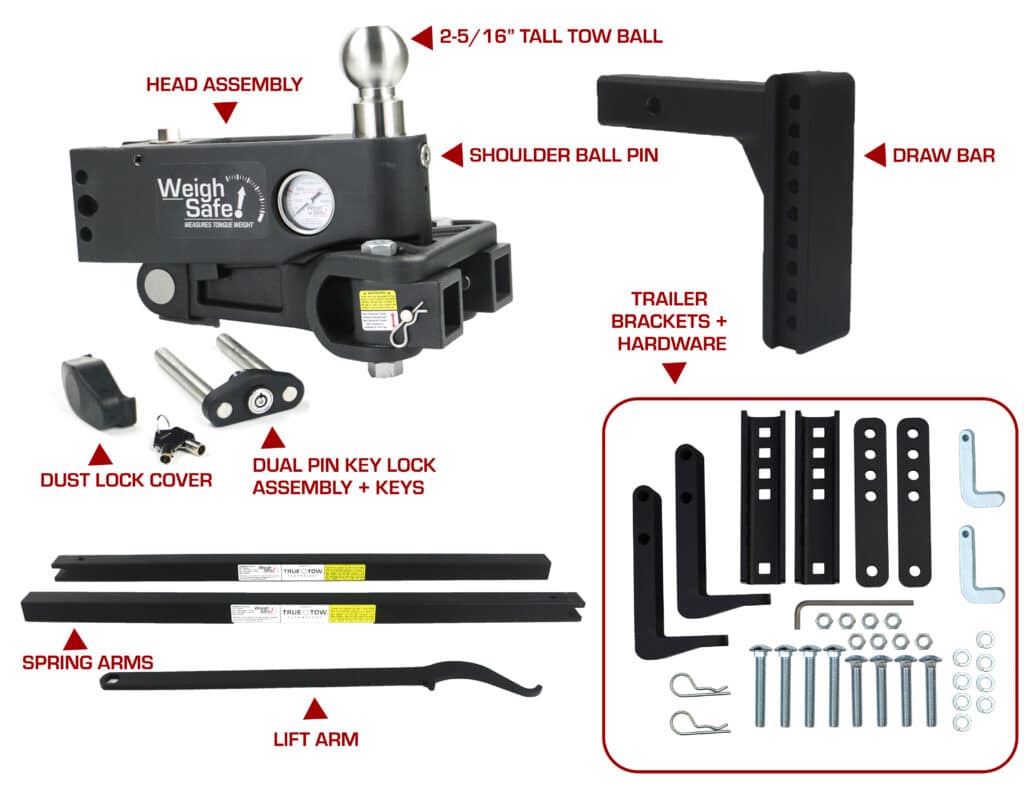

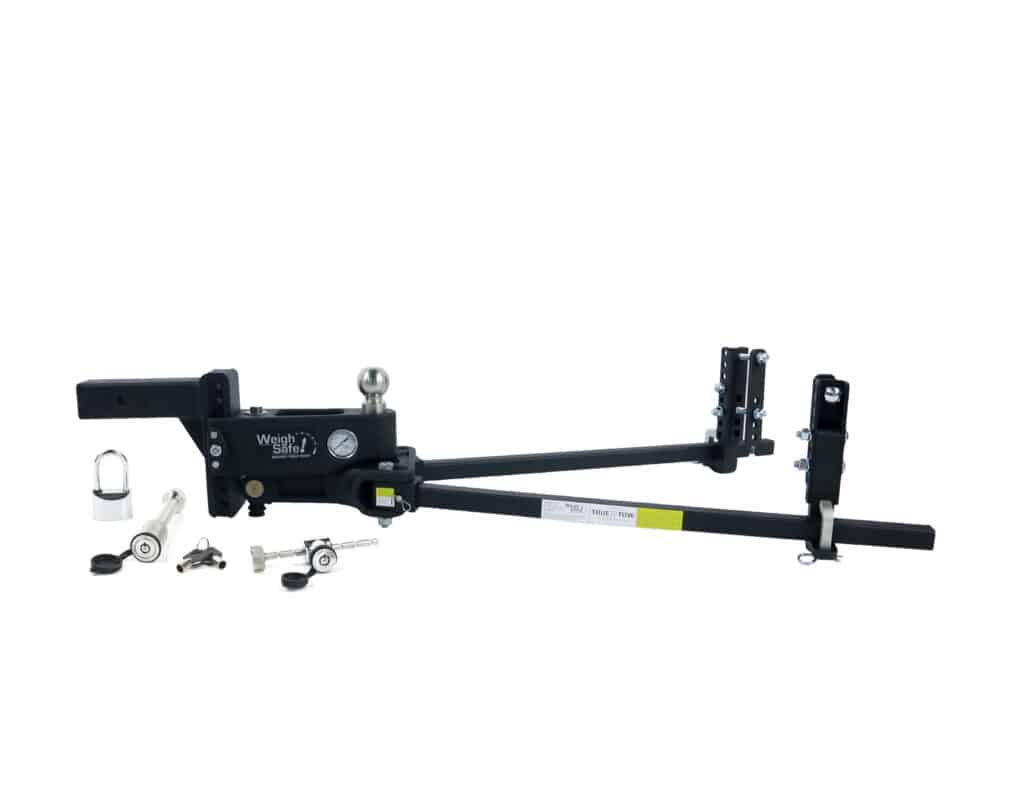

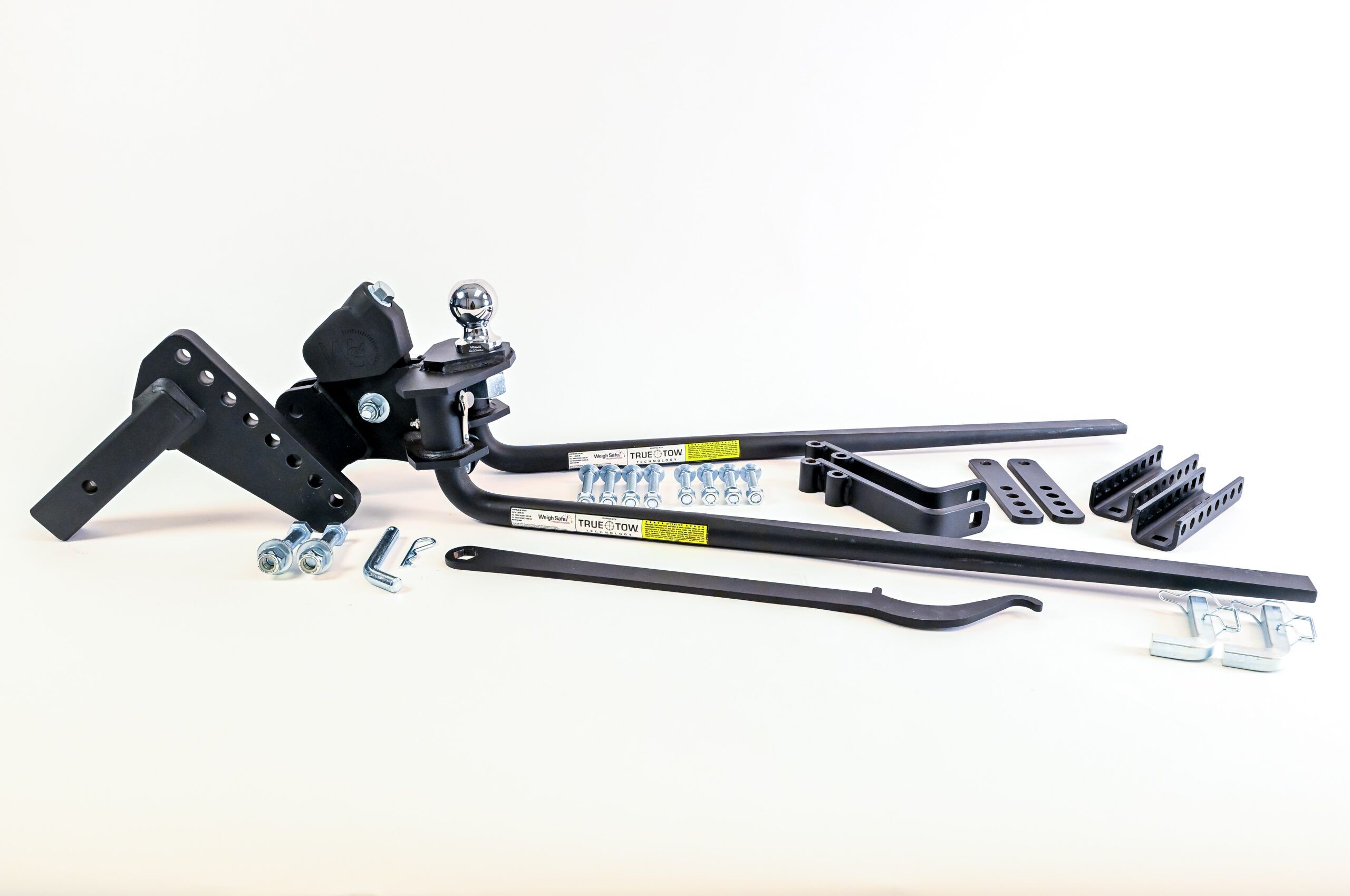

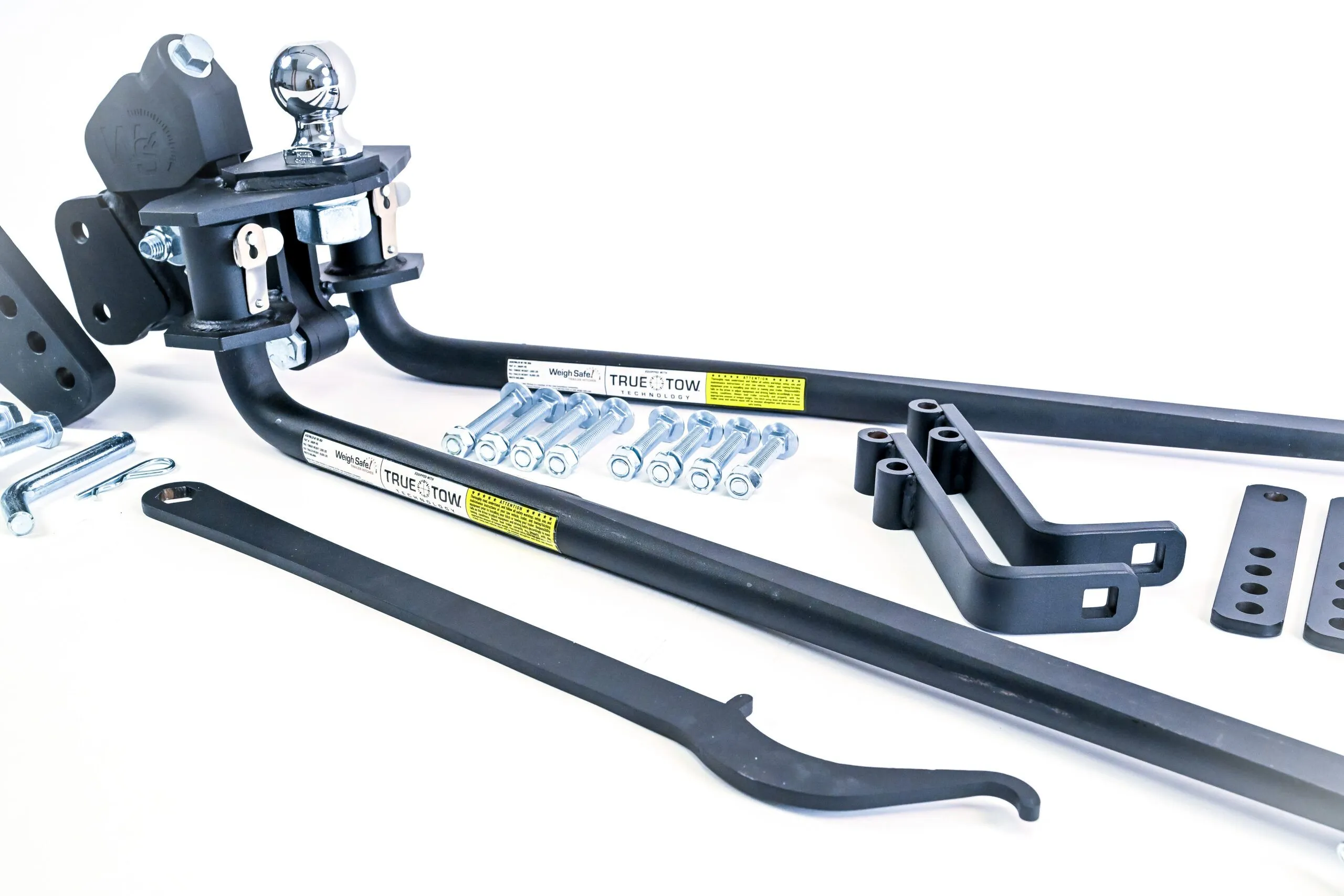

What Comes In The Box

The Weigh Safe True Tow

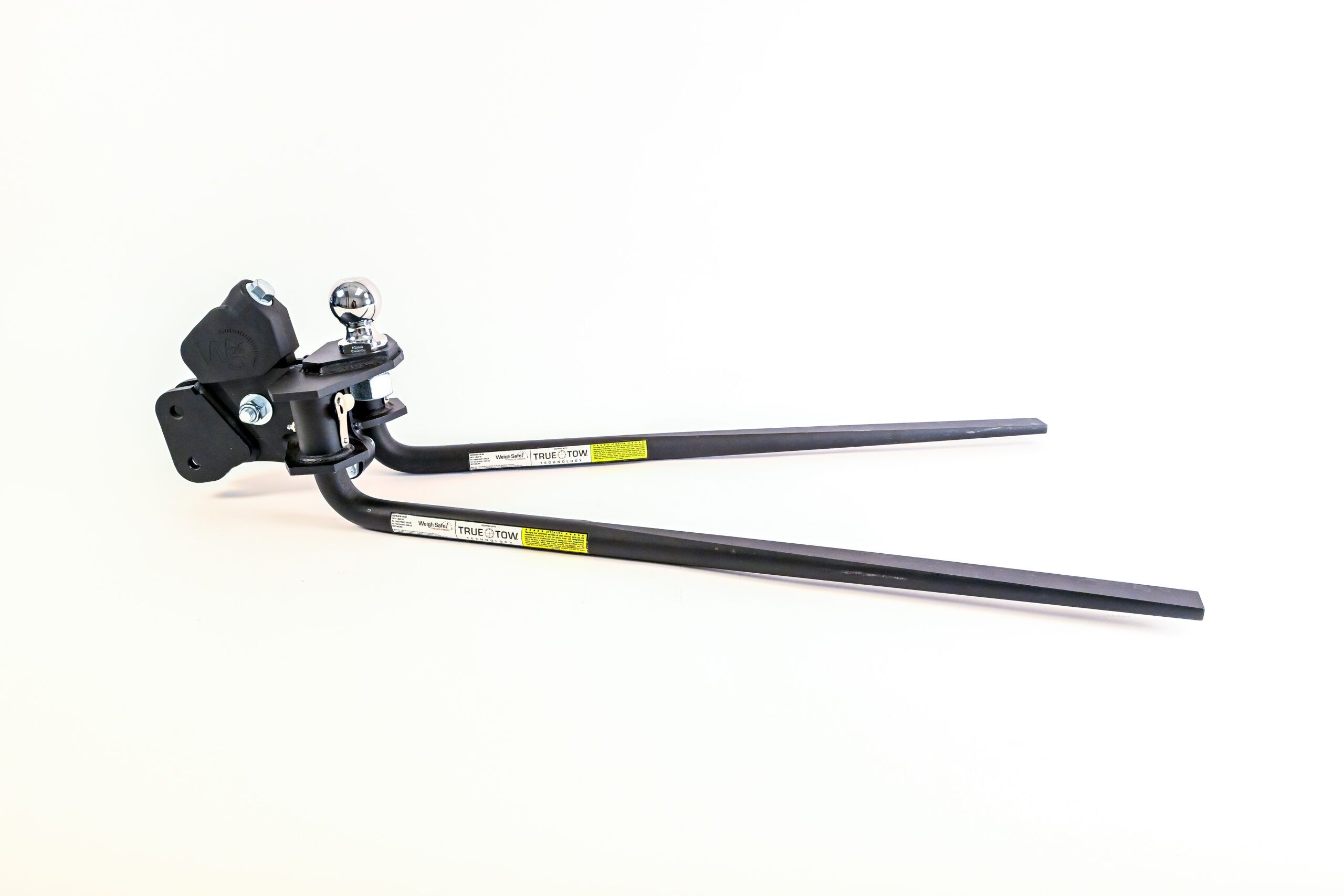

The True Tow Kit comes with everything you need to stablize your trailer and start towing safer today!

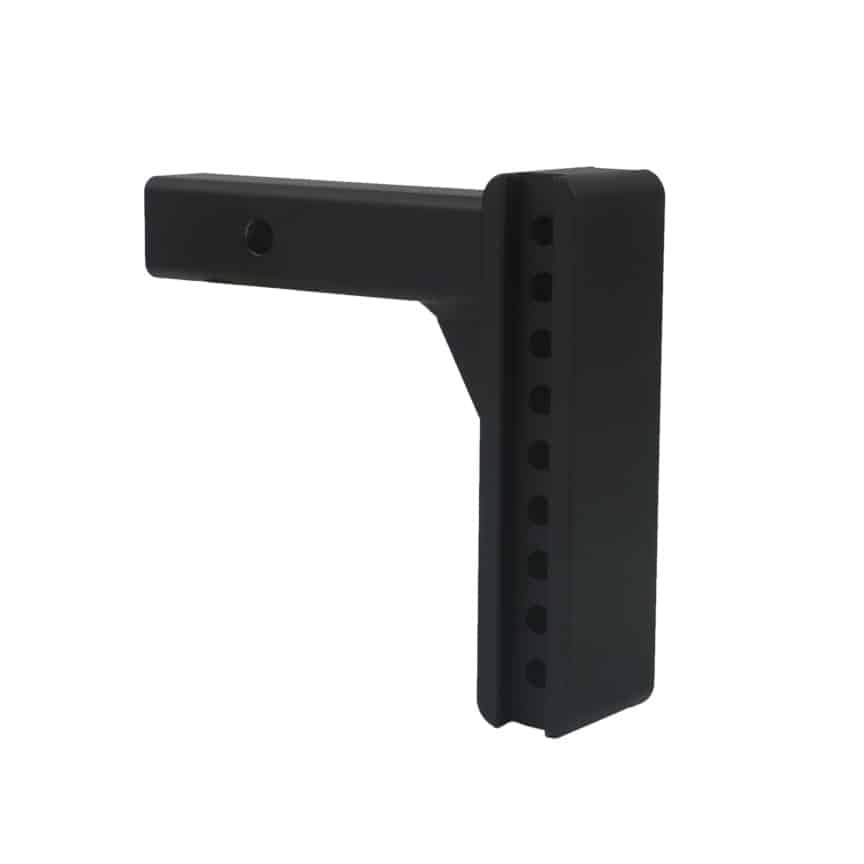

Every True Tow Weight Distribution Hitch comes with a draw bar in your preferred drop length (6′ or 8″) and shank size (2″ or 2.5″). You will also receive one 2-5/16″ tall tow ball.

The adjustable head assembly is held in place with a dual pin key lock assembly and rubber dust lock cover.

High-strength steel with black powder coating.

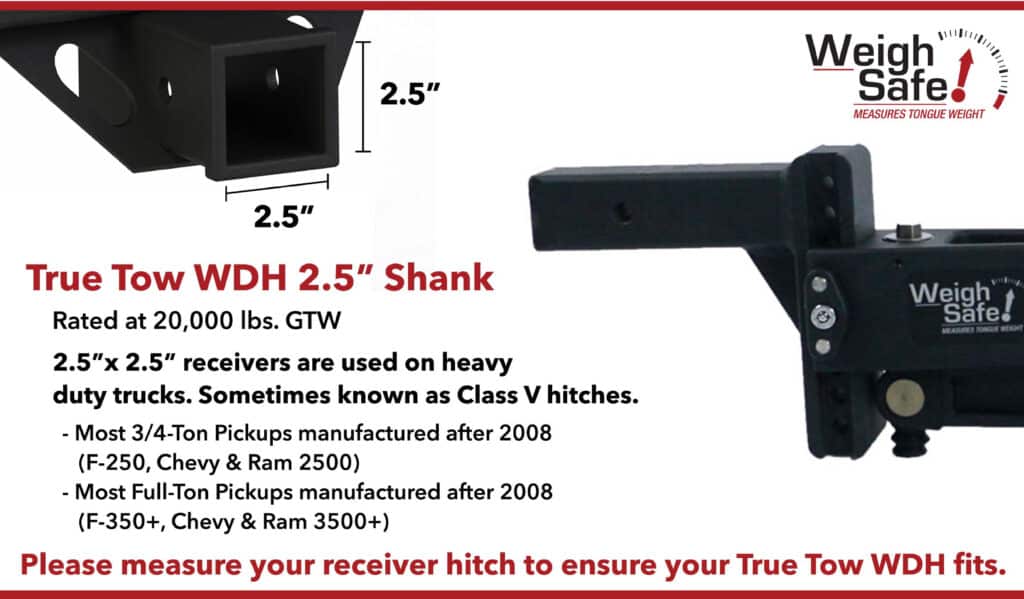

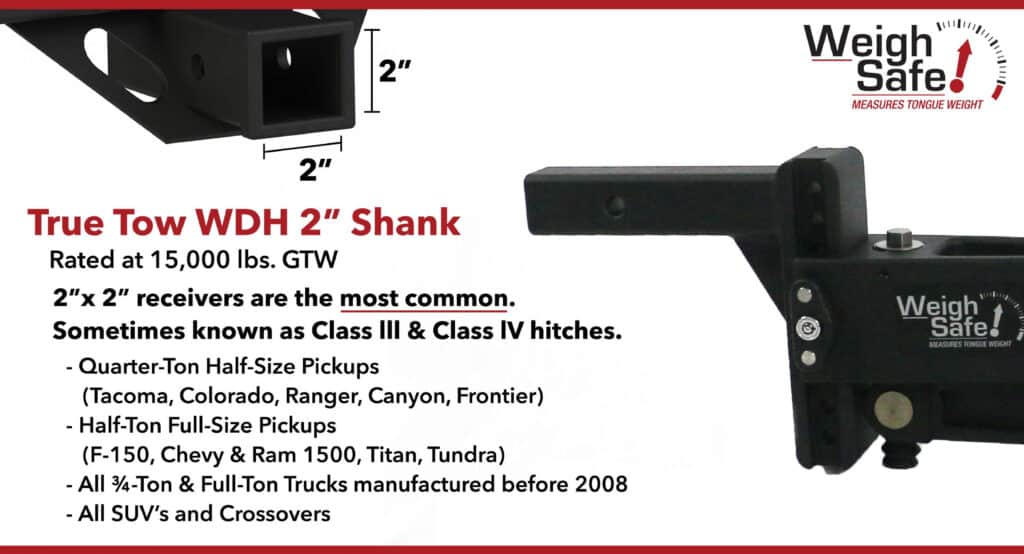

Shank Sizes
Available in 2″ and 2.5″ sizes
Ratings:

  • 2″ Shank: 15,000 lbs GTW
  • 2.5″ Shank: 20,000 lbs GTW

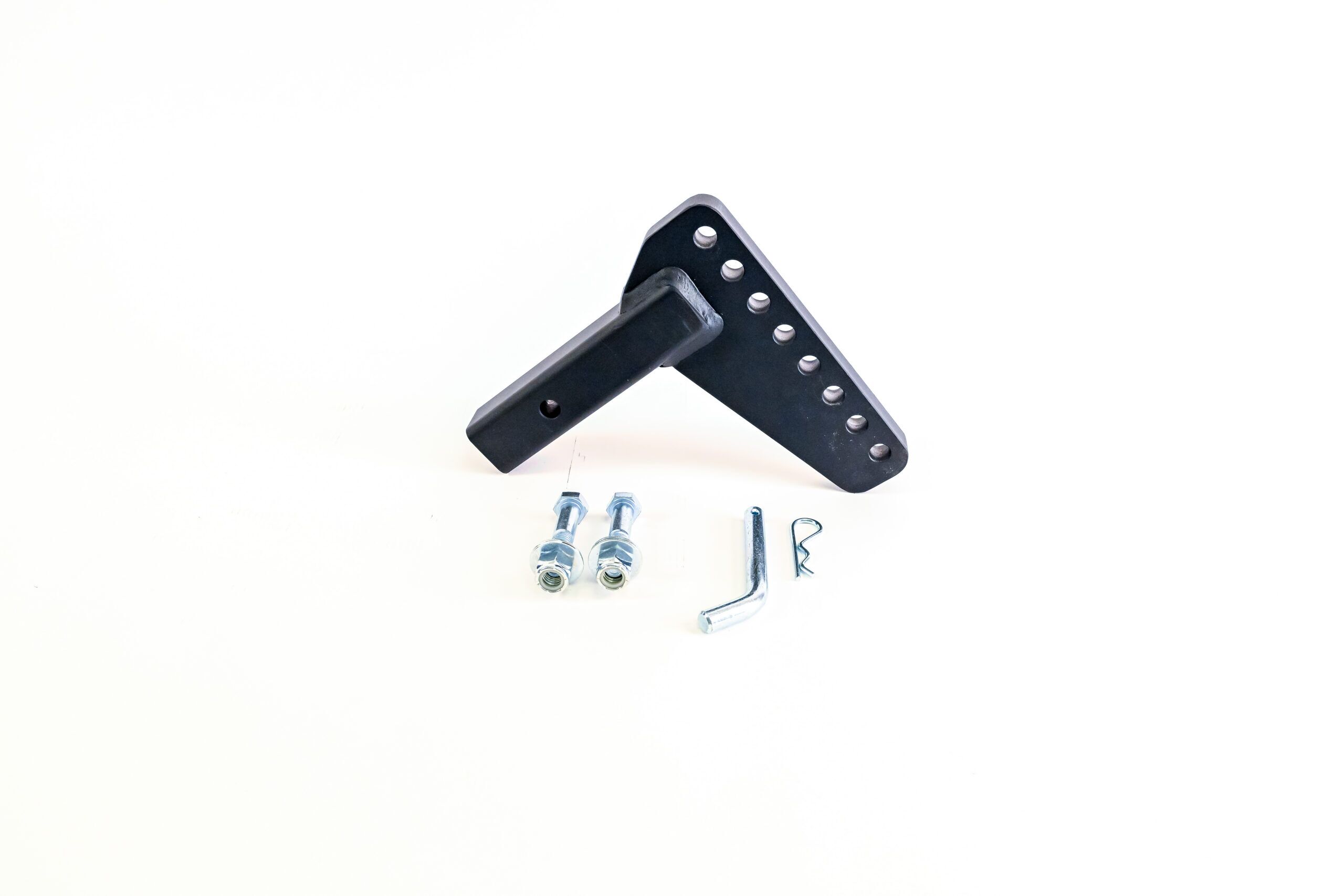

Drawbar Sizes

Available in 6″ drop and 8″ drop.

Adjustable in 1″ increments

High strength powder coated steel

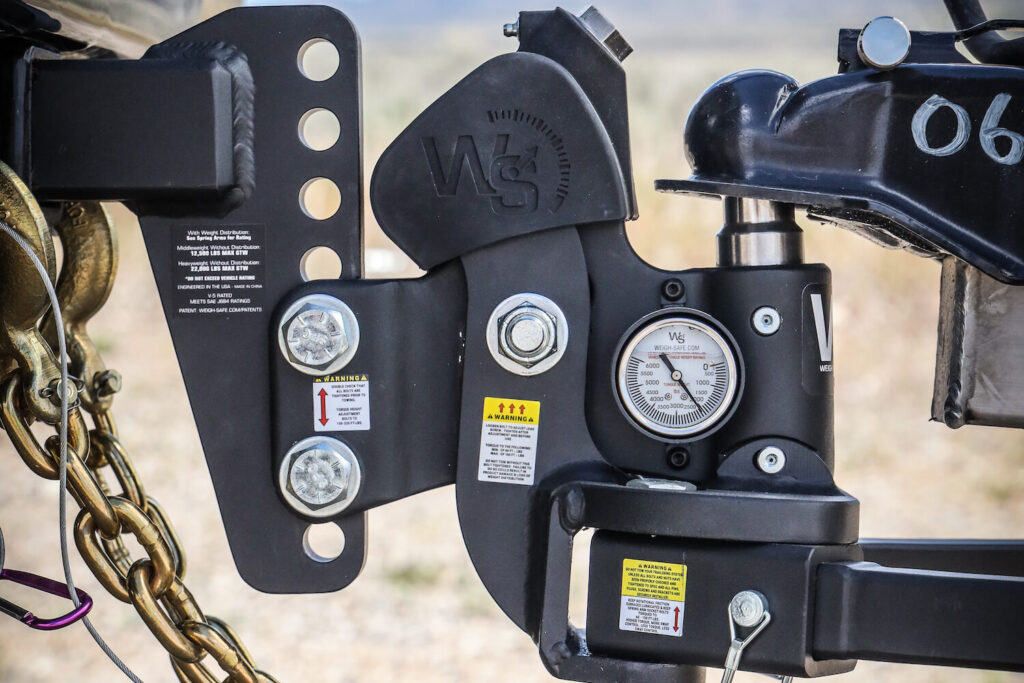

Hydraulic gauge measures tongue weight and distributed tongue weight.

Ratings:

  • up to 1,500 lbs on 2″ Shank
  • up to 2,200 lbs on 2.5″ Shank

Limited Lifetime Warranty on the gauge!

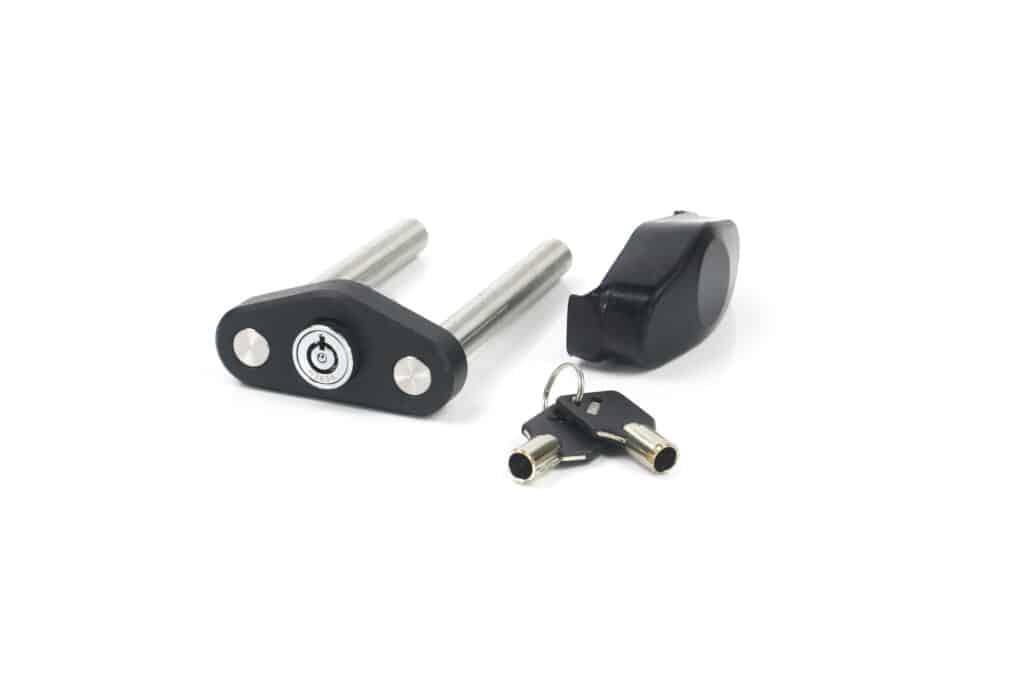

Made of high-strength powder coated steel.

Securely locks head assembly into draw bar.

Locks can be keyed alike to all other Weigh Safe locks.

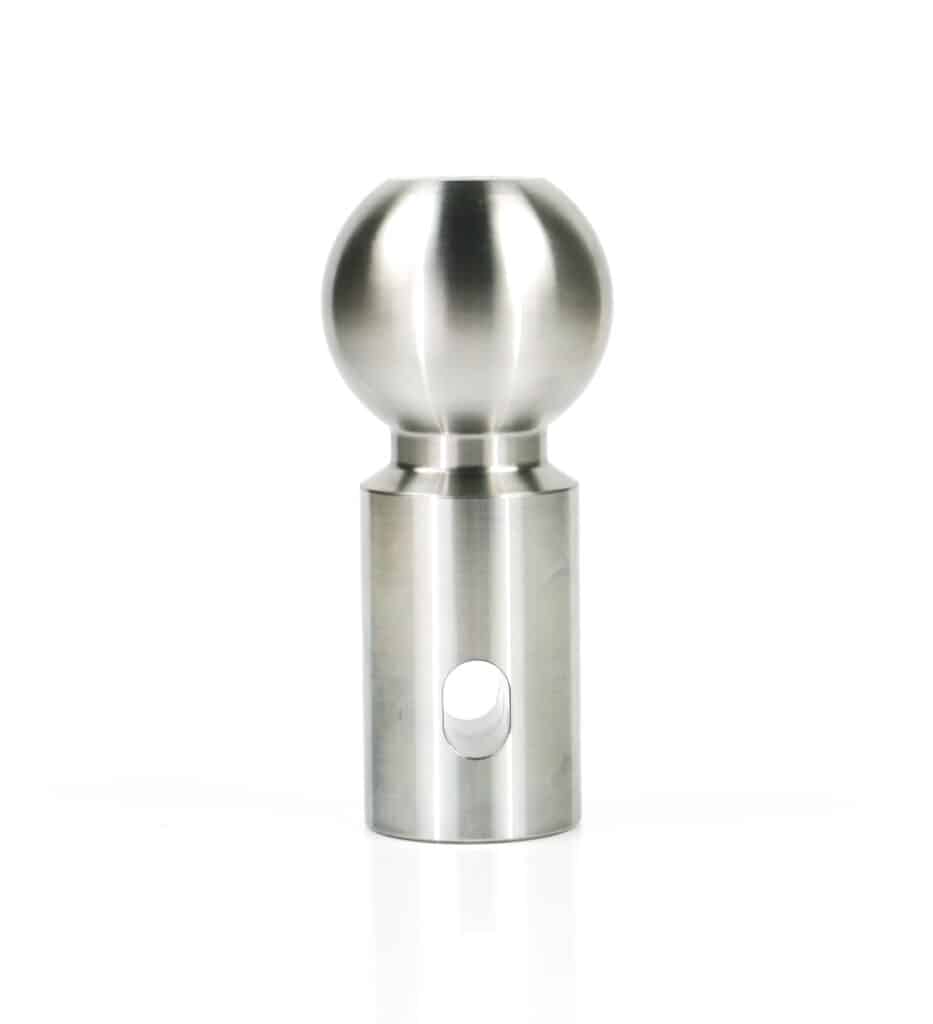

Every True Tow Weight Distribution Hitch comes with a 2-5/16″ tall tow ball.

Made of heavy duty stainless steel that won’t rust.

Tow ball is locked into the head assembly for security.

The True Tow Weight Distribution Hitch can be keyed alike to any of our matching lock sets including a hitch locking pin, adjustable trailer coupler lock and padlock.

All locks are keyed alike so that you have one key for your whole system!

Convinced Yet?

Meet Weigh Safe

Weigh Safe – A Family Company

Weigh Safe was founded in 2014 in Lindon Utah by Bryce and Brandon Doman.

That same year, Weigh Safe won “Best New Tools and Equipment Product Award” at the automotive industy’s largest trade show – SEMA.

Bryce is a successful entrepreneur responsible for the HomeSports Dominator Basketball Hoop and Landecor outdoor products.

Brandon was a quarterback for the San Fransisco 49ers and later the Quarterback Coach Offensive Coordinator for Brigham Young University.

Together, Bryce and Brandon have grown this company with the singular mission of improving the world with safer towing.

Made In The USA

All of our Weigh Safe Adjustable Aluminum Ball Mount hitches are made locally in our production facility in Lindon, Utah.

Weigh Safe - A Utah Company

Utah Born & Bred

Weigh Safe was founded in 2014 in Lindon, Utah. Since then we have grown significantly while still maintaining our Utah roots.

We’ve grown from three people & an idea, to over 60 employees and have produced hundreds of thousands of hitches!

And Our Customers

Great Safety Enchancement

The Weigh Safe Drop Hitch significantly increases towing safety by taking the guess work out of towing. You can precisely adjust your load, to place optimum weight on the ball. In an emergency, this may be the difference between losing control and recovering smoothly… I would call it very affordable insurance!

Jamie W.

Truly An Awesome Product

This is my second weigh safe hitch, I still have the 1st one but wanted a shorter one for my other truck. Having had a weigh safe before, it was a no brained to get a weighsafe again. Quality is top notch and I’ll always support American companies first.

Shawn J.

Probably Will Never Buy Another Hitch

Great hitch. Has 2 5/16 and 2” ball. No more digging or hunting for correct hook up. No more sleeves to use. Everyone should have this set up. Make for better towing. Good style looks great go the xtra mile save money

William G.

Weigh Safe Is Useful For All Of Your Towing Needs

Boating

The Weigh Safe Hitch is the perfect solution to towing your boat safely to your next adventure.

Find Out How

Boating

The Weigh Safe Hitch is the perfect solution to towing your boat safely to your next adventure.

Find Out How

Travel Trailers

There’s so much to see and do in this world and no better way to see it than up close and personal with your travel trailer. Don’t let your trailer sway you from experienciing it

Find Out How

Snowmobiles

There’s nothing like the rush that comes from snowmobiling. A Weigh Safe Hitch will help ensure you don’t get unwanted adrenaline rushes on your way to the powder.

Find Out How

Side By Sides

Side by sides are awesome – perhaps one of the best things in the last 20 years. With a Weigh Safe Hitch you can make sure all of your tense and exciting moments happen on the trail – not on highway

Find Out How

Side By Sides

Side by sides are awesome – perhaps one of the best things in the last 20 years. With a Weigh Safe Hitch you can make sure all of your tense and exciting moments happen on the trail – not on highway

Find Out How

Moving

Moving is the worst.
It’s even worse when you finally get your trailer loaded and hit the highway, only to have your trailer start swaying. With the Weigh Safe Hitch you can avoid rearranging your trailer and instead, focus on getting to your destintation faster and safer!

Find Out How

Moving

Moving is the worst.
It’s even worse when you finally get your trailer loaded and hit the highway, only to have your trailer start swaying. With the Weigh Safe Hitch you can avoid rearranging your trailer and instead, focus on getting to your destintation faster and safer!

Find Out How

Start Towing Safer Today!

Starting Towing Safer Today!

Weigh Safe Features

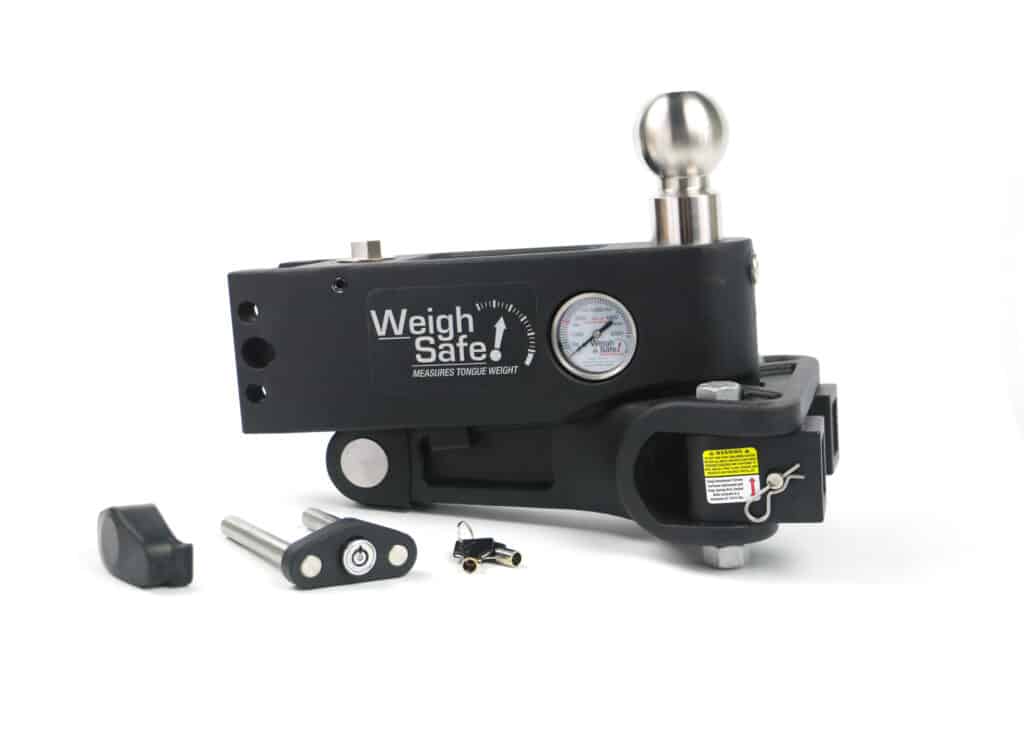

ROBUST Head Assembly

Easy - Secure - Adjustable

Compatible With Steel Weigh SAfe

Awards And Partners

TRUE TOW VS. COMPETITOR

Customer Images

Customer Stories

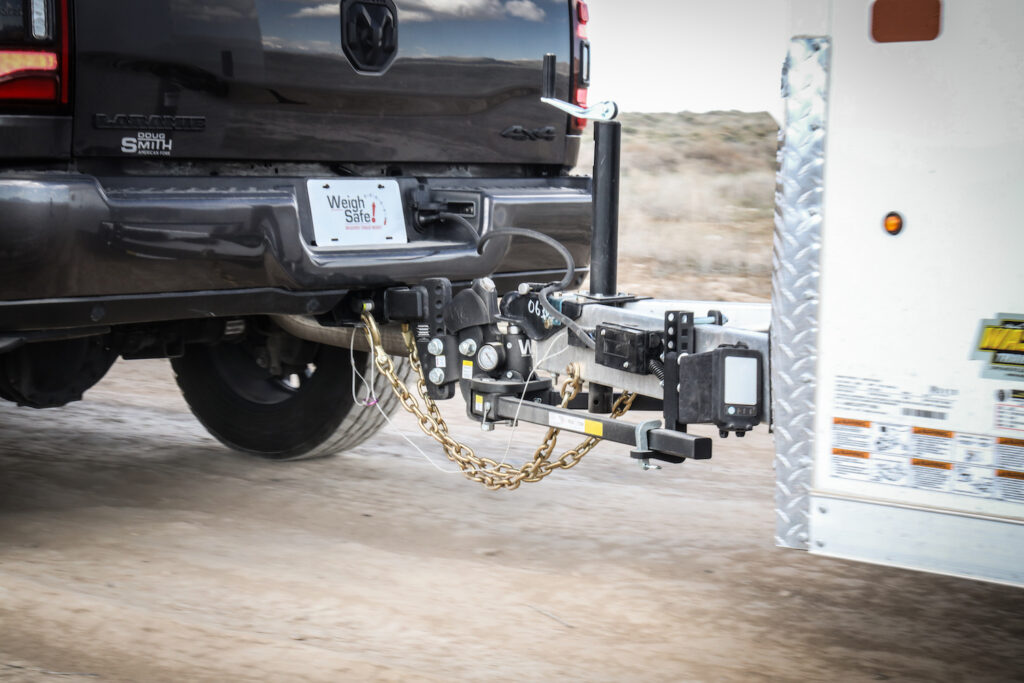

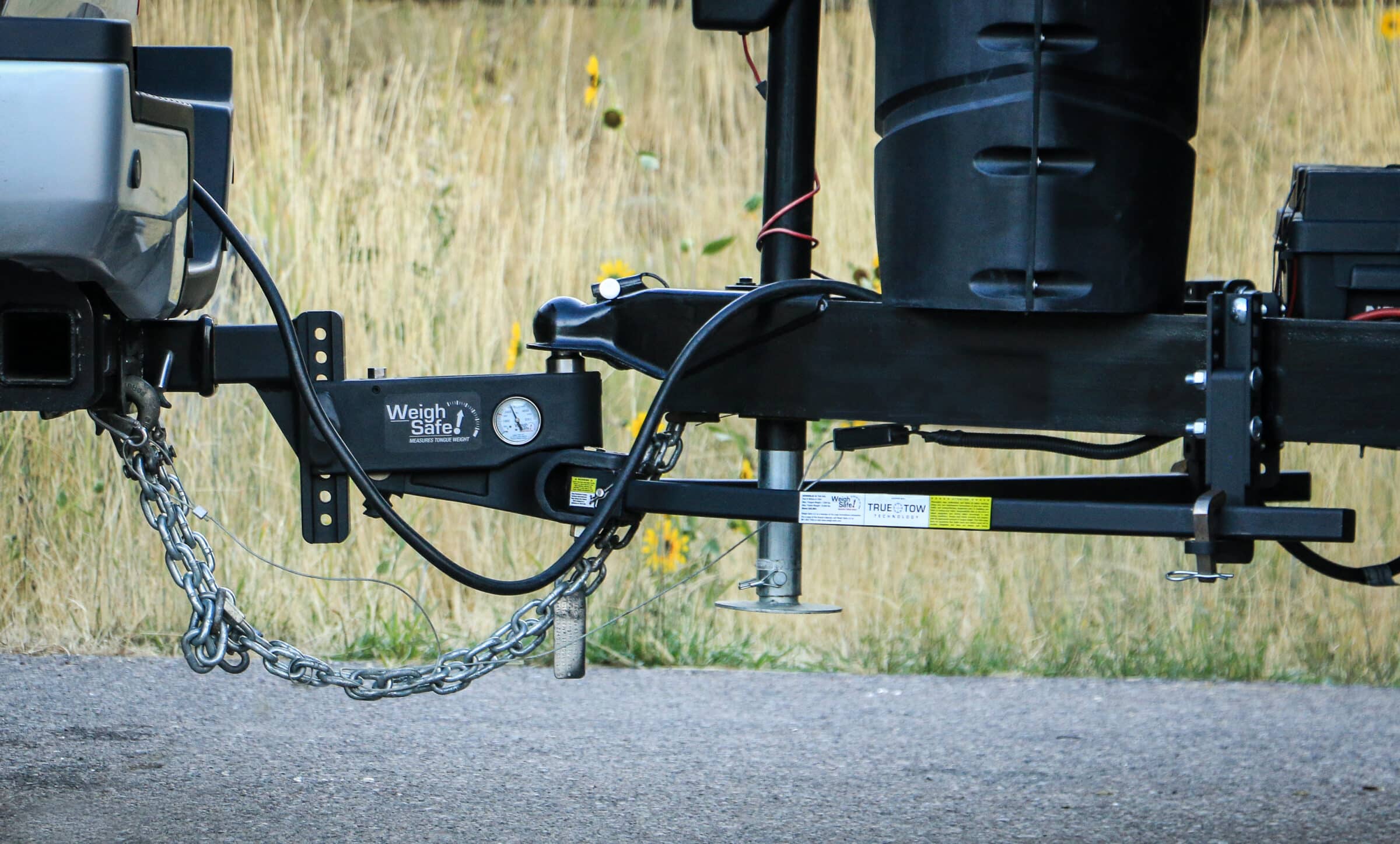

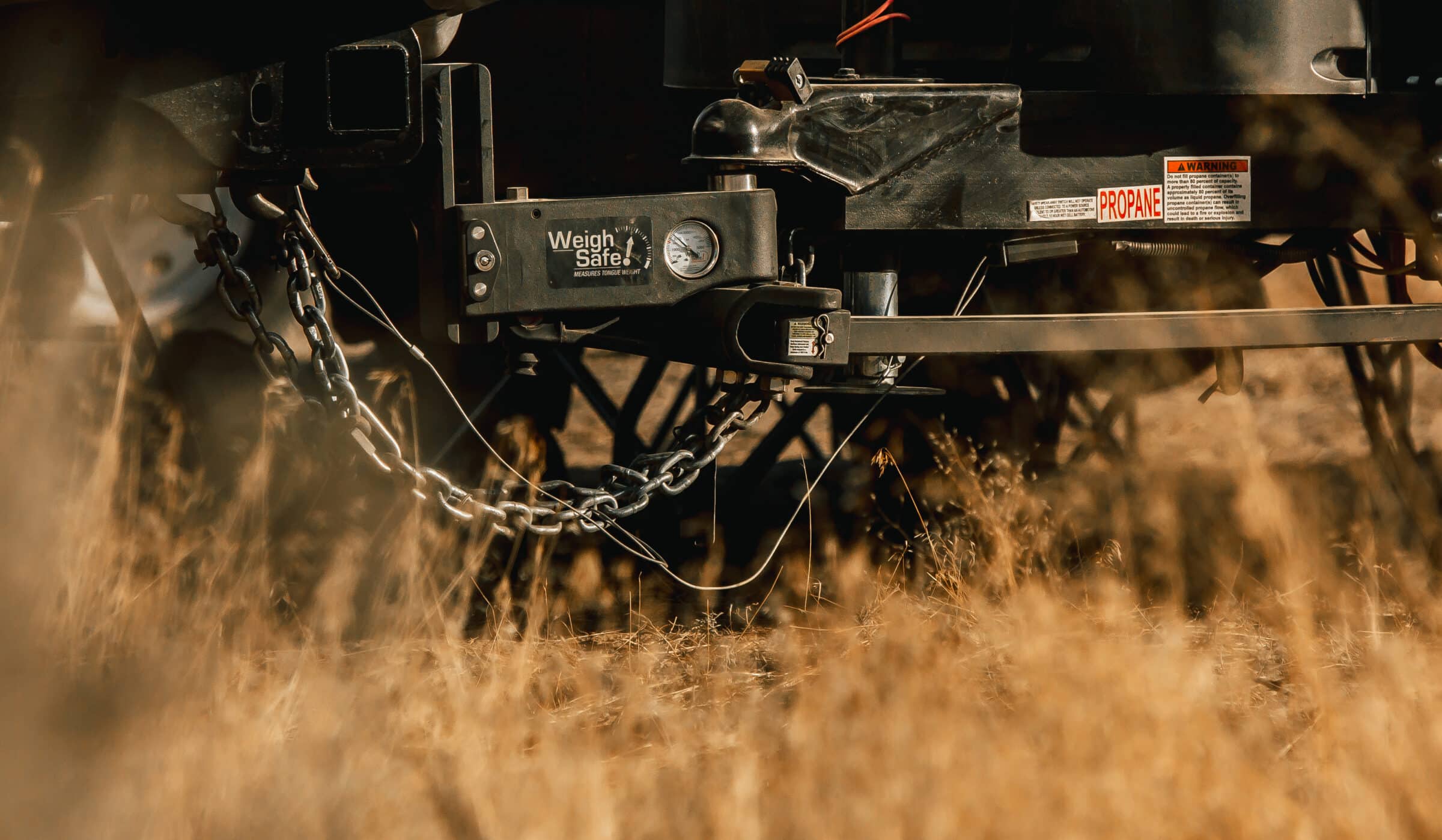

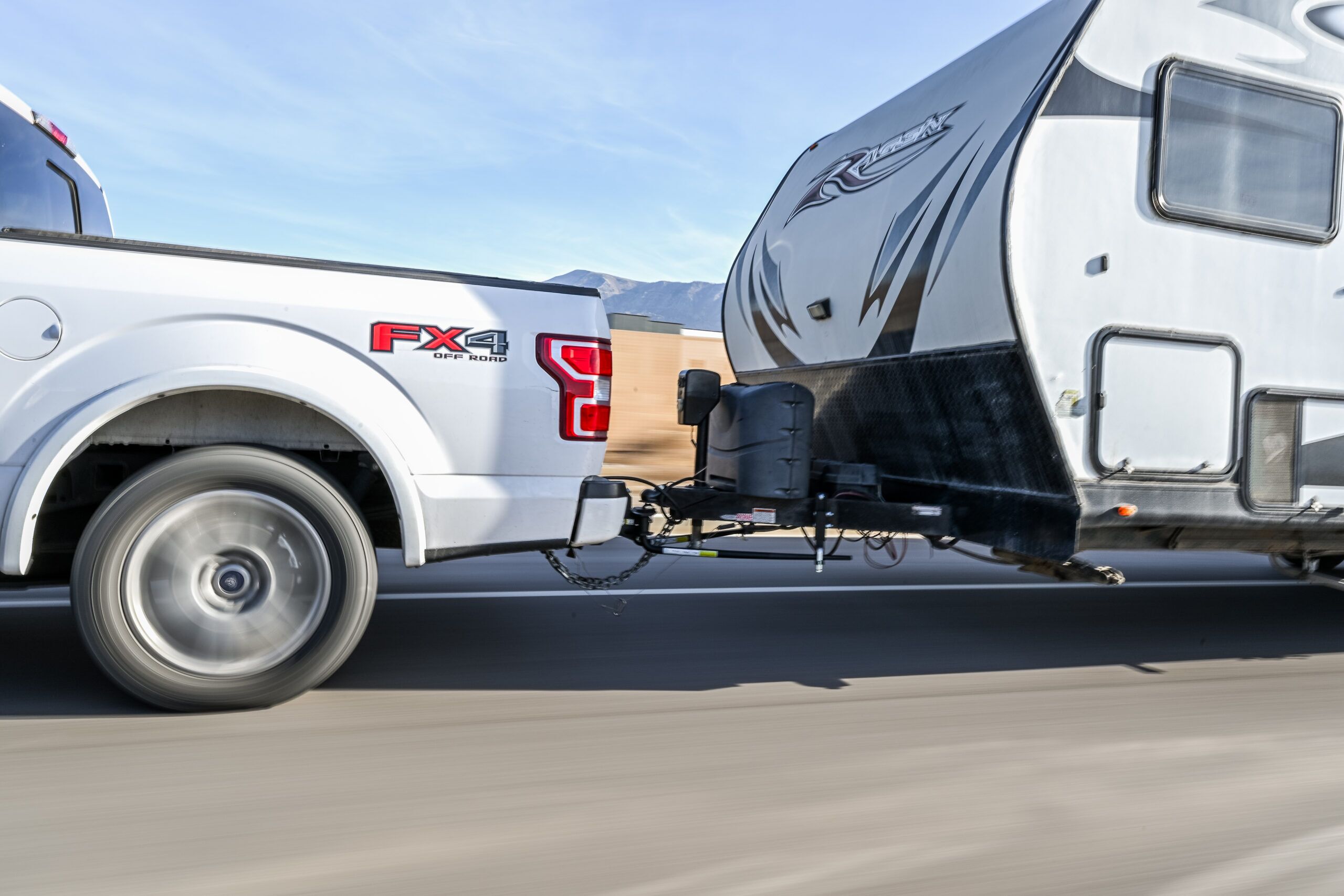

True Tow In Action

Still Not Sure?

Then Try Joining Our Newsletter

You’ll receive exclusive discounts, towing tips and other helpful information.

Still Not Sure?

Then How About Our Newsletter?

You’ll receive exclusive discounts, towing tips and other helpful information.

Some Of Our Other Fantastic Products

aluminum weigh safe hitch

The Weigh Safe Drop Hitch is the one and only trailer hitch with a built-in scale that signals you to adjust your load before you hit the road, resulting in a much safer and enjoyable towing experience.

Shop Now

Weigh Safe 180 Hitch

Introducing the Weigh Safe 180 Hitch, the Best-Looking/Rugged drop hitch on the market. The 180 Hitch has a quick exchange design, easy adjustments, and heavy-duty towing capacity designed to function perfectly for all your towing needs.

Shop Now

Steel Weigh Safe Hitch

Made of 32 pounds of solid Powder Coated Steel, this hitch is as tough as they come. This hitch has a towing capacity of 18,500 pounds max GTW and a max tongue weigh of 1,500 pounds

Shop Now

Yes, the largest A-Frame that our weight distribution hitch can fit on is a 2.5″x6″ frame, so as long as it is that size or smaller, it should work!

Add it to your Gross Combined Weight Rating (GCWR); our calculations take the weight of the hitch into account and distributes it.

This hitch ships in four separate boxes and sometimes they are delivered at different times or on different days. Please wait at least 48 hours from receiving your initial package before contacting our customer support team about a missing box. Watch Video

Yes you can back up with your hitch attached as long as you’re not backing up a steep driveway or anything that is a significant change in grade.

Yes, you can. The purpose of the weight distribution hitch is to return any weight that is lost off the front axle of the tow vehicle when the trailer is attached. It is not meant to take away all the squat in the truck. The tongue weight of the trailer still exists and is added to the back axle causing compression on the springs. If you would like to reduce that remaining squat in the back of your tow vehicle, feel free to use airbags or any other anti-squat system. Just make sure you check that your DTW (Distributed Tongue Weight) is correct for every tow with or without airbags.

If the lead screw is not turning, there are a few things you can check to solve the problem.

  1. Make sure the lead screw is not bottomed out. The lower the pivot system only has so much travel and will bottom out between the interval gauge shield and the top of the pivot system. If this is the case, raise the height of your trailer bracket platforms and again, try to adjust the screw until you reach your DTW.
  2. Has your lead screw been serviced with grease lately? Make sure to use the grease ports and bi-annually (if not more frequently) pump in grease to keep the frictional surfaces lubricated. Without lubrication, it can increase friction and wear, keeping the lead screw from turning.
  3. Large amounts of torque may be needed. With large trailers reaching the maximum ratings on the hitch, sometimes the loads require large amounts of torque to adjust the lead screw. If this is the case, raise the tongue jack to lower the forces on the lead screw. Adjust the lead screw in or out, depending on what is needed, and put the tongue jack down periodically to check if you have reached the required DTW.

The purpose of the weight distribution hitch is to return any weight that is lost off the front of the axle of the tow vehicle when the trailer is attached. It is not meant to take away all the squat in the truck. The tongue weight of the trailer still exists and is added to the back of the axle causing compression on the springs. If you would like to reduce that remaining squat in the back of your tow vehicle, feel free to use the air bags or any other anti-squat system. Just make sure you check that your DTW (distributed tongue weight) is correct for every tow with or without airbags.

If you feel that your truck is still squatting more than normal even after you have adjusted the True Tow hitch to read the DTW that you determined from the DTW tool, double check the following:

  1. Check your tow vehicle ratings and make sure you are not towing over the weight capacity.
  2. Check that all measurements and the tongue weight without the spring arms attached were inputted correctly into the DTW tool to ensure you have the correct DTW.

The DTW should be about 2-3 times more than the original tongue weight of the trailer. If this is not so, something must be wrong. Please contact our Customer Support team so we can look further into resolving this for you.

If you see any clear, odorless oil leaking from the hitch, please check all hydraulic plugs, gauges, and the piston under the towball to see if one of these areas are leaking. If so, please contact our Customer Support team to get your True Tow hitch repaired under warranty.

If you notice the gauge is not measuring tongue weight, there could be a couple causes for this. Please check the following prior to calling our Customer Support team:

  1. Try jouncing(stepping on or kicking) the front of the trailer on the trailer frame. Doing this takes away any resultant friction keeping the gauge from working correctly.
  2. Your tongue weight is less than 200lbs. If your trailer tongue is less than 200lbs., the gauge has a hard time reading this low of a tongue weight. Please increase your tongue weight to be over 300 lbs. to confirm your gauge is in fact not working.
  3. Hydraulic oil is leaking. Without hydraulic fluid, the gauge will not read weight. If you see any clear odorless oil leaking from the hitch, please check all hydraulic plugs, gauges, and the piston under the tow ball to see if one of these is leaking. If so, please contact our Customer Support team to get your True Tow hitch repaired under warranty.

The True Tow Weight Distribution Hitch is painted with a high-strength powder coating for rust and corrosion resistance. Through normal ware, especially in high-friction points of the hitch, the paint could rub or chip off. If you are seeing this, you could use a flat back primer and paint to touch up these areas to reduce rust and corrosion, which will extend the lifespan of your hitch.

NO. The True Tow Weight Distribution Hitch has all of it’s own parts and components made specifically for the True Tow Hitch. For example, even if you have our Steel Weigh Safe Adjustable Ball Mount, you cannot use that draw bar with your True Tow WD system. Only the draw bar that came with the True Tow is compatible with its components as it has a reinforcement piece made specifically for the True Tow Hitch.
However, you can use your Steel Weigh Safe Adjustable Ball Mount Slider Rack on your True Tow Weight Distribution draw bar!

NO! Our True Tow Weight Distribution Hitch is made of steel and is not compatible with any of our aluminum components.

Please call or text us at 1(801)820-7020. We’d be excited to talk to you and answer any questions you have.

If you have a particularly specific or tough question, you may even end up talking with our Chief Engineer – he’s pretty cool.

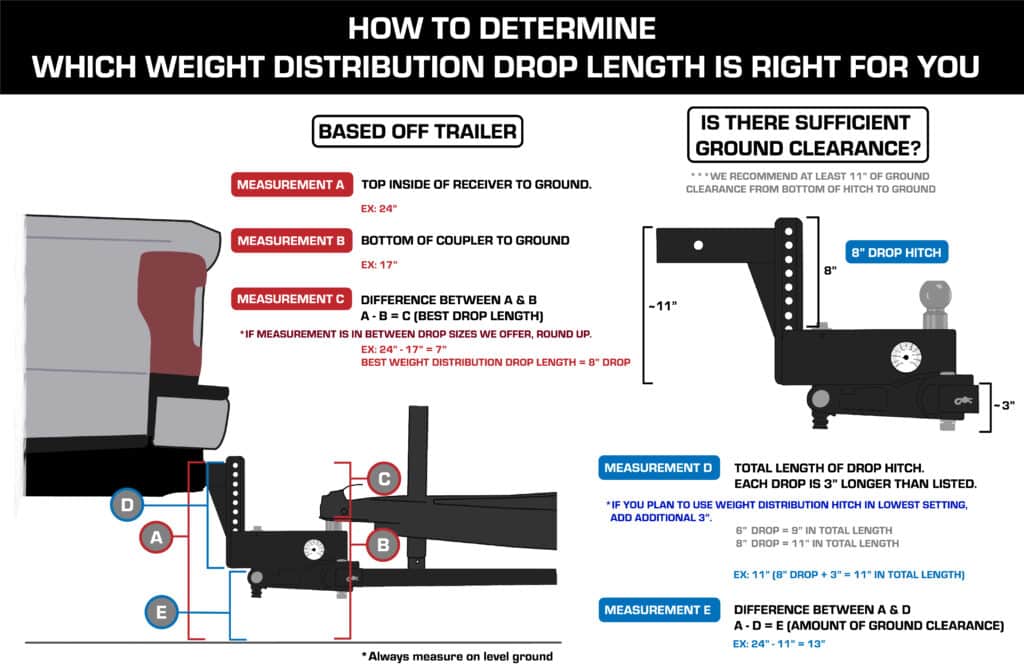

Our Weigh Safe and 180 Drop Hitches are available in a 4”, 6”, 8”, and 10” drop/rise. As far as specifications go, we recommend at least 11” of clearance from the bottom of your installed ball mount. Here is how you can determine which size drop will work best for your vehicle:

  1. Measure from the top of your tow vehicle to the ground (make sure you are on relatively level ground)
  2. Subtract drop height (all of our drops measure 3” longer than the listed drop length; 4” drop = 7” in total, 6” = 9” and so on)
  3. The total that you get after subtracting the drop is the amount of clearance you would have with that particular drop

22″ (top of receiver to ground) – 11″ (8″ drop + extra 3″) = 11″ (of clearance)

* It is important to know that this is a generic recommendation and there are other factors that could impact the distance from the bottom of the hitch to the ground.

Check out our Weigh Safe product video for more information about the hitch and how to use it.

**In order for Weigh Safe to best take care of our customers, we encourage them to register their products on weigh-safe.com. However, we will still honor our Limited Lifetime Warranty even if the product has not been registered.**

Weigh Safe, LLC warrants to the original buyer of this Weigh Safe® (the “product”) that —under normal and ordinary use and service—the product will be free from defects in materials and workmanship. Weigh Safe, LLC offers a Lifetime Warranty on all of our gauges. If the product includes a latent defect, the product will be repaired or replaced at Weigh Safe’s option. Proof of purchase required. Register your product at www.weigh-safe.com within thirty (30) days of purchase to guarantee warranty service and to receive product updates.

This warranty does not cover normal wear and tear and also does not apply to any product (i) beyond its expected useful life; (ii) that has been modified or altered; (iii) damaged as a result of improper installation, improper maintenance, or unreasonable use including, without limitation, loading the product beyond its factory-rated load capacity; (iv) damaged in a collision; or (v) that has suffered any other damage.

This warranty does not cover the finish on any Weigh Safe product which includes machined, brushed, cerakoted, painted/powder coated, or chrome-plated finishes.

The Company shall not be liable for any consequential, incidental, indirect, penal, or special damages arising out of any act or failure to act, even if the Company has been advised of or has foreseen the possibility of such damages.Customer assumes all risk of injury resulting from use of the product.

EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED LIFETIME WARRANTY, THE PRODUCT IS SOLD “AS IS” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.

For warranty service, Customer must first contact the Company and obtain a return authorization number, then return the product to the Company, at Customer’s expense.Customer will be responsible to pay any labor costs and all shipping charges to return the product to Customer.

In order to receive full warranty benefits the products must be returned in it’s originally packaged state or according to Weigh Safe product return requirements.

Contact Customer Service at (801) 820-7020 or returns@weigh-safe.com.

Yes! All our ball mounts can be used in the drop position and inverted to be used in the rise position. Please note that in the rise position, all draw bars gain 1” (the 4” drop is 5” in the rise position and so on).

Yes! You can get replacement keys. It will ask you for the key code (which should be engraved on the lock itself and start with an H3) and then you should be good to go, and we will ship matching keys out to you.

No, the HITCH LOCKING PIN does not come with the hitch and will need to be purchased as an add-on. Any hitch locking pin that is purchased with any of our adjustable ball mounts is automatically keyed alike.

Right now, ONLY our 2” receivers are compatible with rock tamers.

No, none of our hitches are compatible with any type of weight distribution or sway bar systems. However, we do have our own weight distribution hitch called the True Tow Weight Distribution Hitch. It is it’s own hitch in itself and is not compatible with any of our previous lines of hitches. However, our Steel Weigh Safe slider is compatible with the True Tow draw bar and can be interchanged.

Once an order is placed, it takes 2-5 business days to process (although we try to get it out quicker) before it is shipped out. Once shipped you will receive an email with tracking information. See the map below for estimated transit times from our warehouse in Utah.

All orders within the lower 48 states over $48 qualify for FREE ground shipping. Shipping rates to Alaska, Hawaii and Canada will vary in price.

We also offer expedited shipping options at checkout in case you are needing your order a little bit quicker. Expedited orders MUST be placed before 2:00 PM MST in order for it to be shipped out that same day. Expedited orders placed after 2:00 PM MST will be shipped the following business day.

Please call or text us at 1(801)820-7020. We’d be excited to talk to you and answer any questions you have.

If you have a particularly specific or tough question, you may even end up talking with our Chief Engineer – he’s pretty cool.
