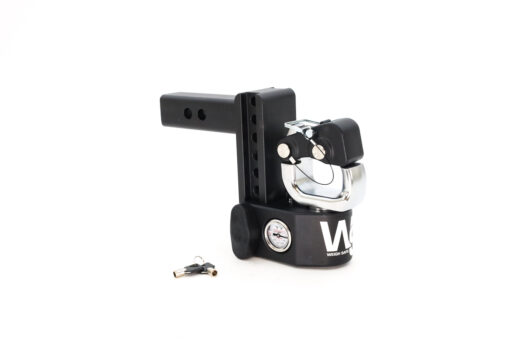

Weigh Safe Steel Pintle Hitch
Choose Your Product
Price range: $344.00 through $594.00

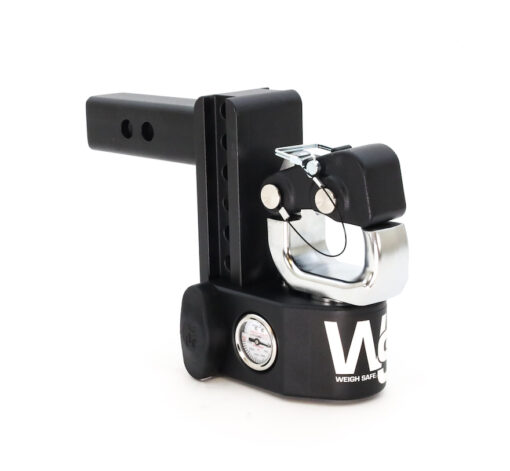

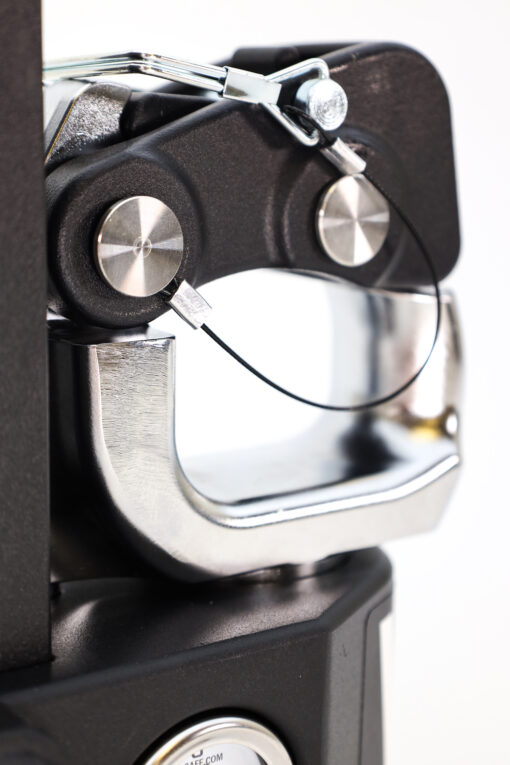

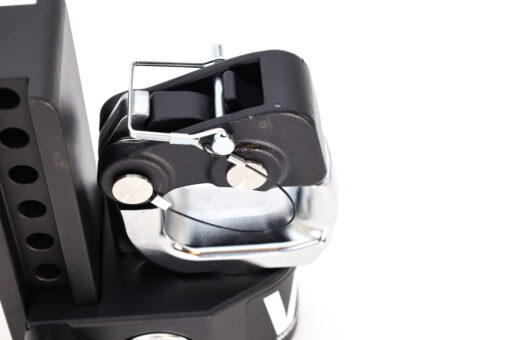

Tough, versatile, and built for serious towing—our Steel Weigh Safe Pintle Hitch combines heavy-duty performance with patented tongue weight measurement. Designed to work with any lunette ring and rated up to 22,000 lbs, it’s your go-to for commercial and heavy duty trailers. The quick-change design lets you switch between pintle and ball in seconds. Built from high-strength steel and finished with chrome and powder coating, it’s engineered for both power and polish.
Whether you’re towing heavy machinery, hauling equipment to the job site, or navigating backroads with a trailer in tow, the Steel Weigh Safe Pintle Hitch delivers unmatched strength, safety, and adaptability. This hitch is crafted from high-strength steel and coated in both chrome and durable powder for corrosion resistance and a sleek, aggressive look. With our patented built-in scale, you’ll always know your tongue weight—no guesswork, no surprises—helping you load safer and tow smarter.
Compatible with all lunette ring sizes and rated for up to 22,000 lbs GTWR (or 15,000 lbs depending on configuration), this hitch gives you the flexibility to haul whatever the job demands. And when you need to switch from pintle hook to ball mount? Just pull the pin—it’s that fast. From rugged performance to refined precision, the Steel Weigh Safe Pintle Hitch is the smarter, stronger towing solution.
THE PINTLE ATTACHMENT INCLUDED WITH THIS HITCH IS NOT COMPATIBLE WITH OUR ALUMINUM WEIGH SAFE DROP HITCH AND WAS DESIGNED TO BE USED WITH OUR STEEL PRODUCT LINE ONLY. IF USED WITH ANY OF OUR ALUMINUM PRODUCTS, IT WILL VOID WARRANTY. PLEASE NOTE, WARRANTY WILL ALSO BE VOIDED IF THE PINTLE ATTACHMENT IS USED WITH YOUR HITCH IN THE RISE POSITION.

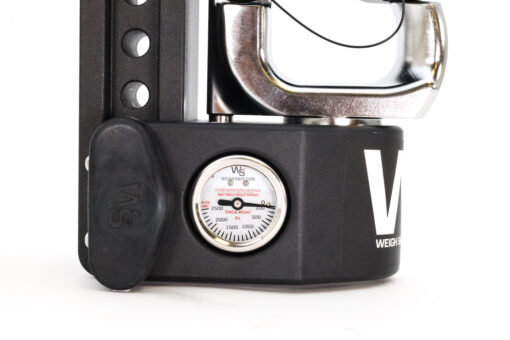

- Tongue weight scale built into the ball mount platform helps you balance your trailer
- Promotes safe towing – lets you know if your load needs to be adjusted before you tow
- Simple operation – automatically provides a measurement every time you couple your trailer
- Efficient and hassle-free – eliminates the need for separate or commercial scales
| Features | 2″ Shank | 2.5″ Shank | 3″ Shank |
|---|---|---|---|
| Drop Lengths | 6″ & 8″ | ||
| Built-in Scale | ✓ | ||
| Pintle Attachment & Ball |

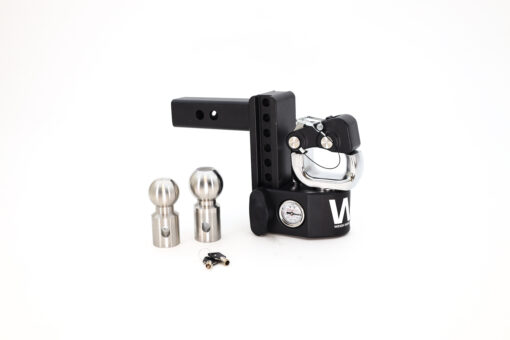

Pintle included 2″ & 2-5/16″ tow ball options |
||
| Max GTW | 15,000 lbs | 22,000 lbs | 22,000 lbs |
| Max Tongue Weight | 1,500 lbs | 2,200 lbs | 2,200 lbs |
| Weight (6″ / 8″) | 31 lbs / 34 lbs | 35 lbs / 38 lbs | 33 lbs / 35 lbs |
| V5 & J684 certified | ✓ | ||
| Drop Hitch Adjustment | 1″ increments | ||
| Pintle Material | Carbon steel with chrome plating & powder coating | ||
| Pin | Dual-pin key-lock assembly included | ||
| Rise | Cannot be used in rise position | ||
| Total Length | Add 3″ (6″ drop = 9″ overall; 8″ drop = 11″ overall) | ||
| Hitch Pin Hole | 5/8″ diameter | ||
| Saves Property | ✓ | ||
| Saves Time | ✓ | ||
Maintenance:
- Keep your trailer hitch clean and wash regularly with soap & water.
- Make sure dust lock covers are always secured on all locks. For replacement dust covers, click here.
Measuring Tongue Weight:
- You must have your truck and trailer on flat, level ground in order for your tongue weight gauge to read accurately. Being on a slant or grade changes will compromise the gauge accuracy.
- After loading the trailer coupler onto the tow ball, move the trailer frame back and forth with your foot to reduce friction. The tow ball and trailer coupler must be jounced to reduce friction and get an accurate tongue weight reading.

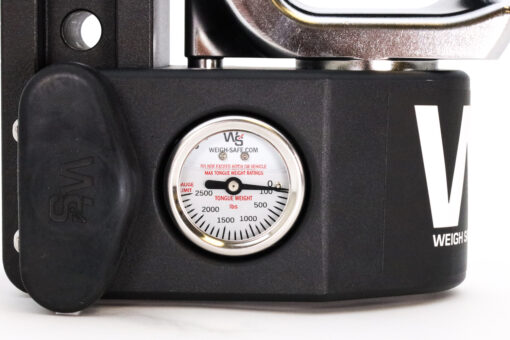

- The Weigh Safe Gauge accuracy is +/- 1.25% over the full range of the scale, which is +/- 50 LBS accuracy.
Hitch Height Setting:
- For the best towing performance, adjust the height of your hitch to make the towed trailer level to the ground. To accomplish this, use a level (if on level ground) or measure the distance to the ground on the front and rear of the trailer frame and adjust the coupler height in order to make both measurements the same.
- For tandem “independent” trailer axles, the height of your hitch does affect your tongue weight. If your trailer coupler is too high, the tongue weight increases and your back axle tires will receive more weight. If your trailer coupler is too low, your tongue weight will read less and increase the weight on the front axle tires. Without being level, your tongue weight will not read true and your tires will wear faster and unevenly.

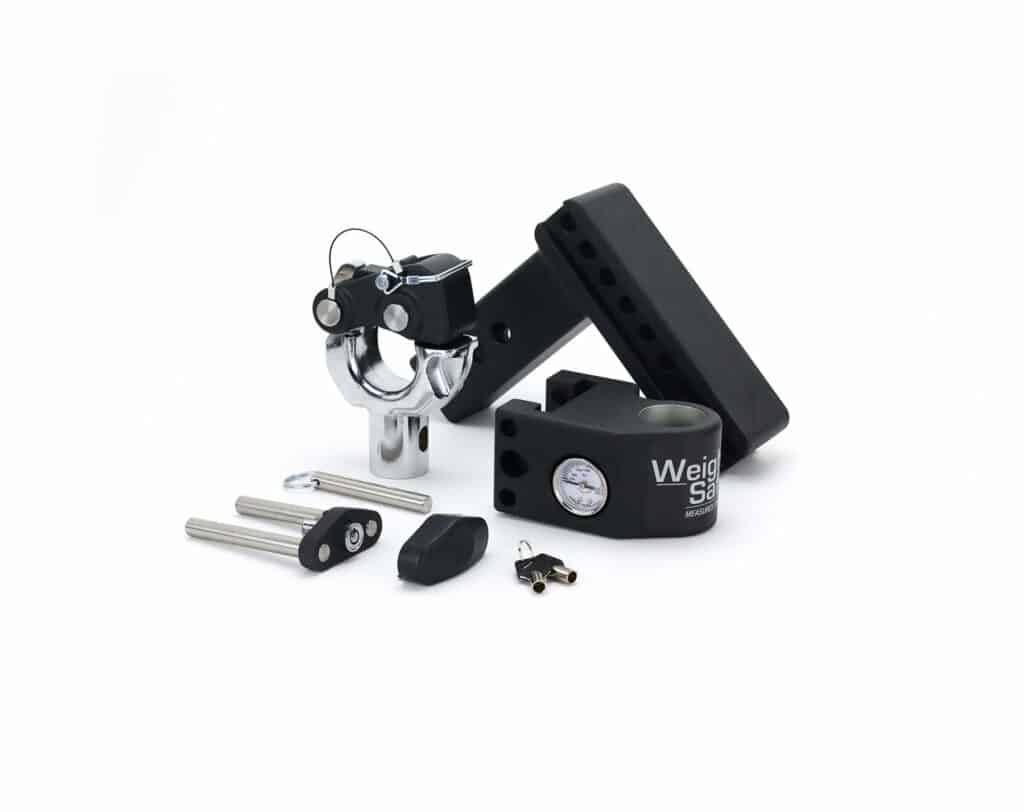

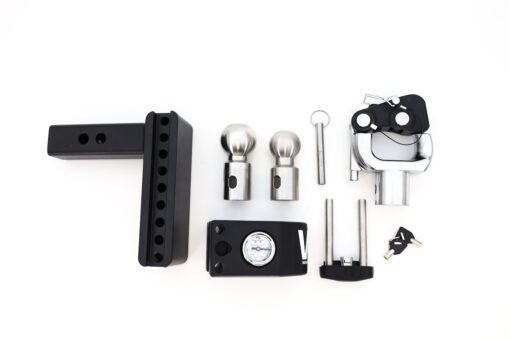

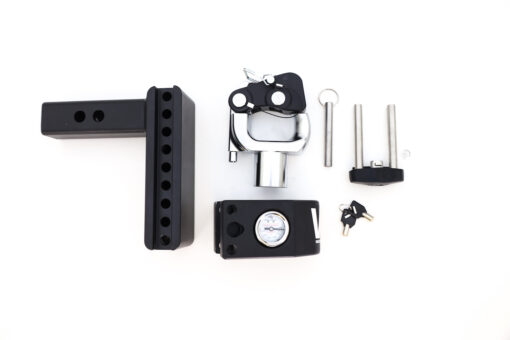

What’s in the Box
| 1- Drawbar | 1- Slider with Gauge |
| 1- Dual Pin Key Lock Assembly with Keys | 1- Dust Lock Cover |
| 1- Ball Retaining Pin | 1- Pintle Attachment |
